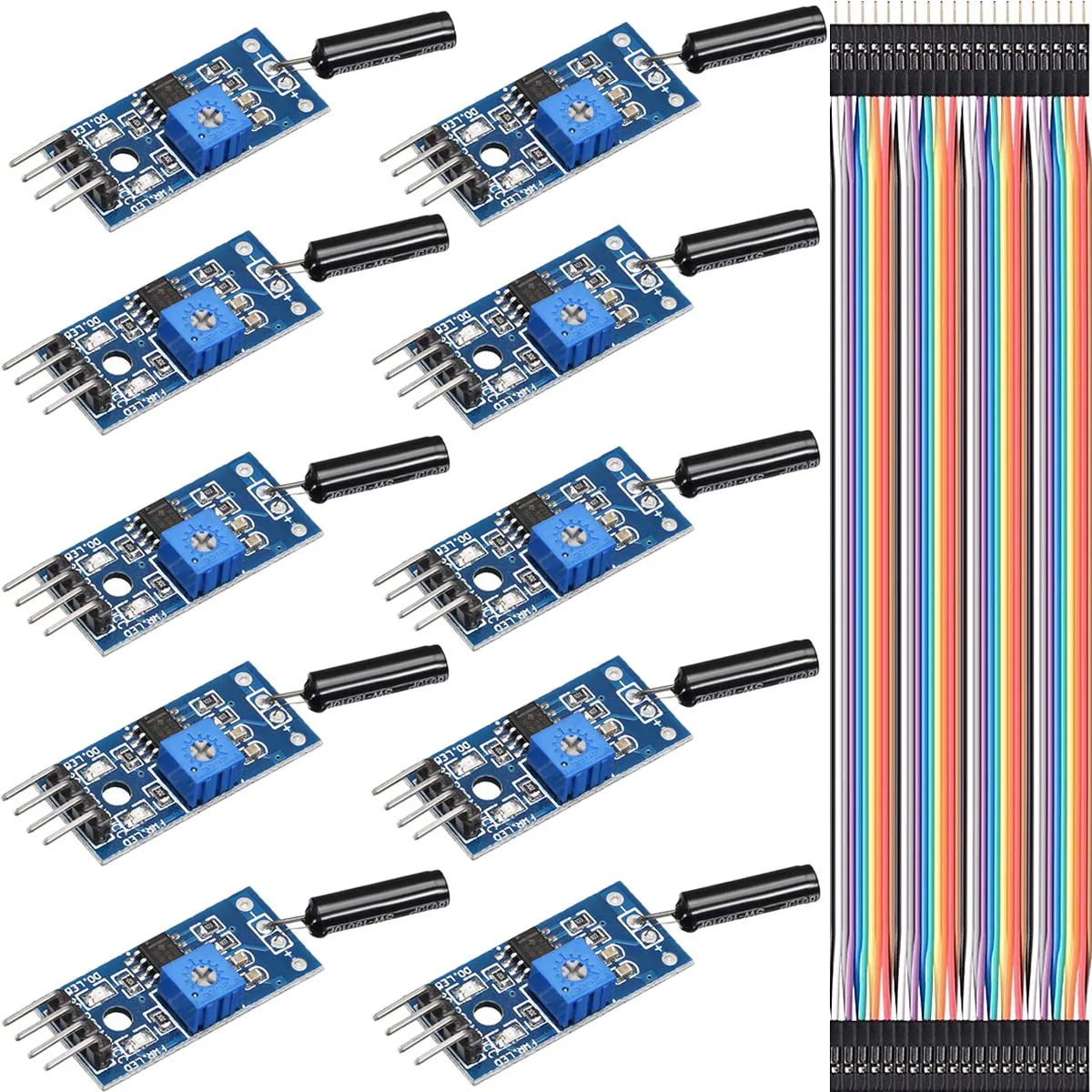

Youmile 10pcs High Sensitive Vibration Switch Sensor Module SW-18010P Alarm Sensor Module Vibration Module with DuPont Cable for Arduino
Youmile 10pcs High Sensitive Vibration Switch Sensor Module SW-18010P Alarm Sensor Module Vibration Module with DuPont Cable for Arduino
Youmile 10pcs High Sensitive Vibration Switch Sensor Module SW-18010P Alarm Sensor Module Vibration Module with DuPont Cable for Arduino

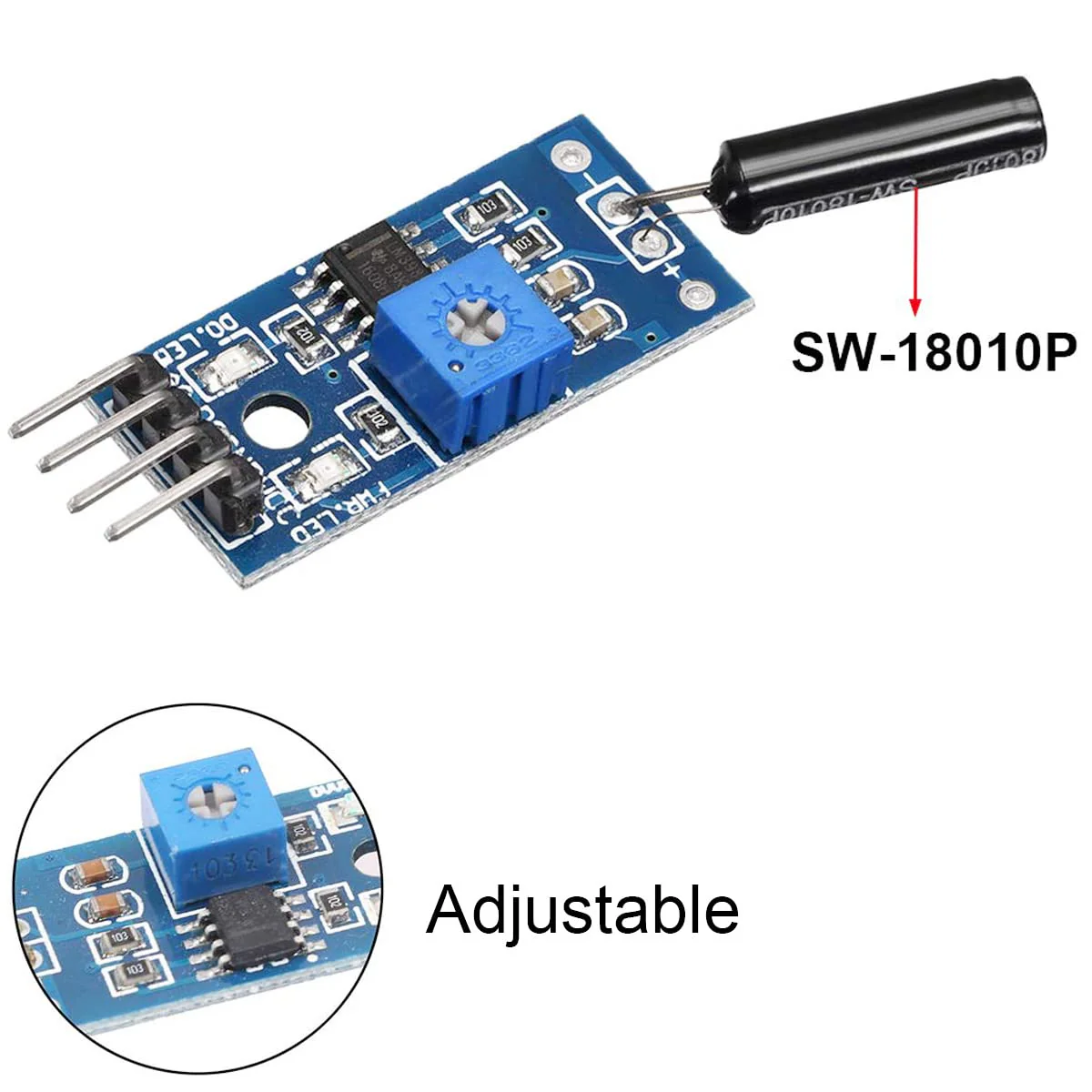

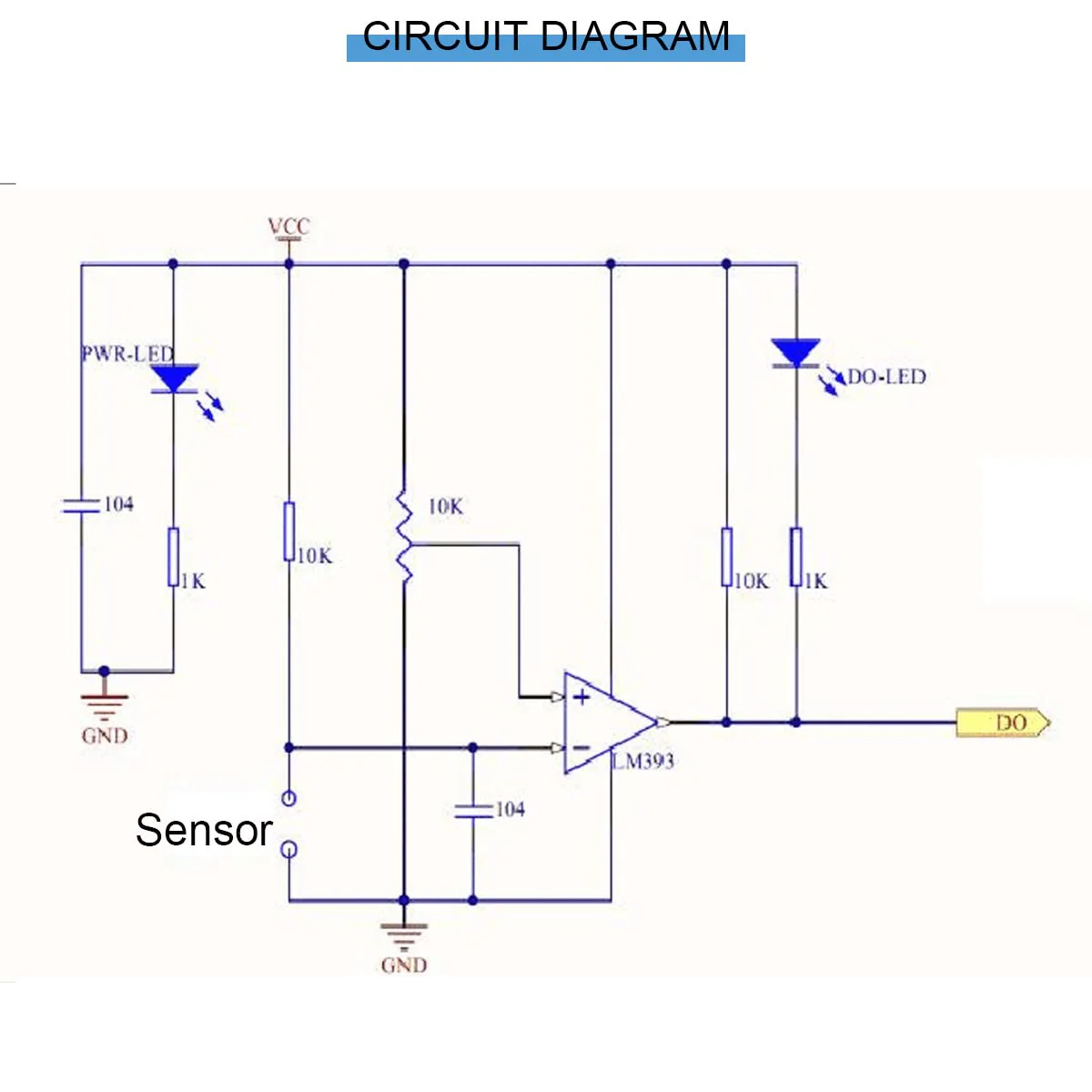

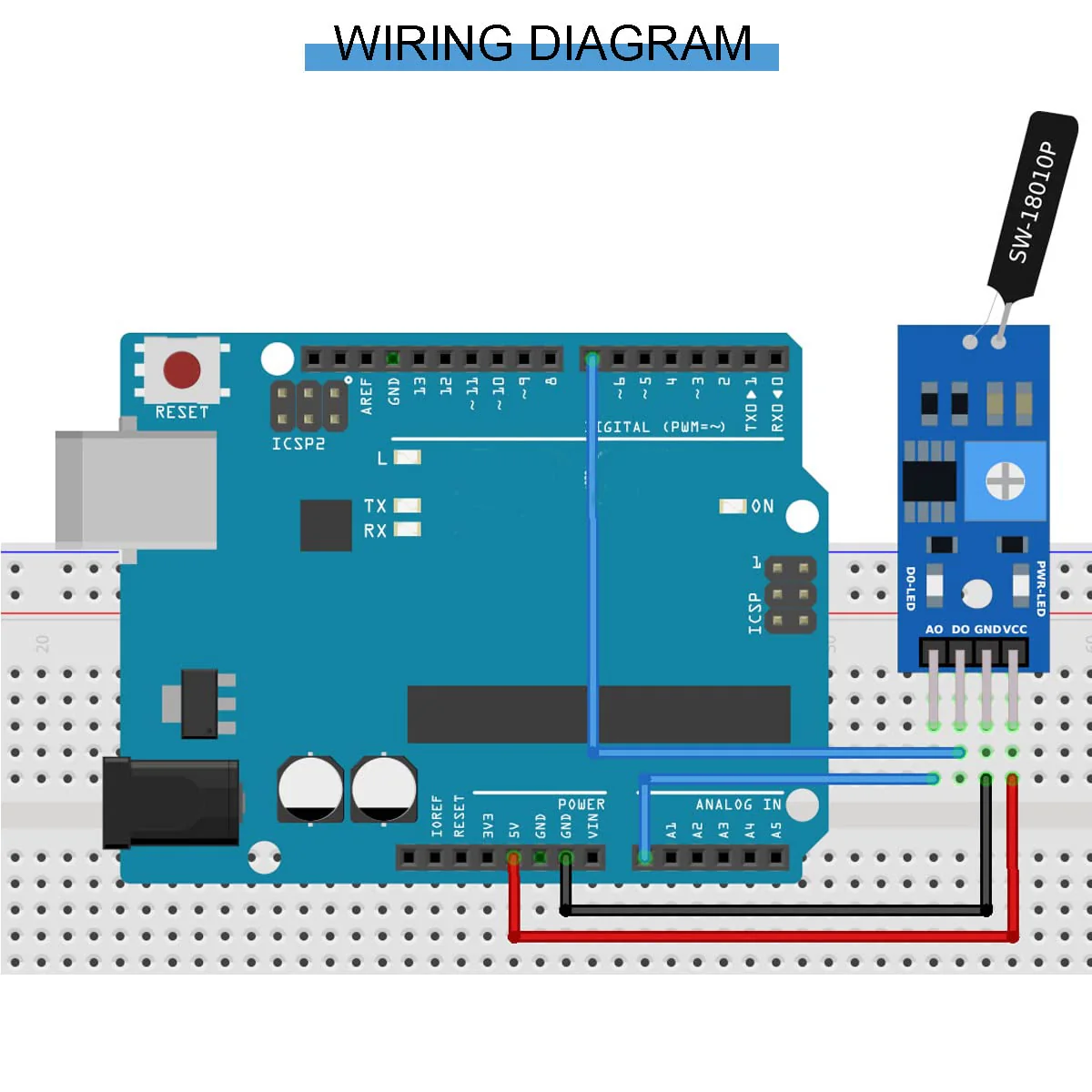

Product description: Description: 1. A fixed bolt holes for easy installation. 2. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA. 3. Use the LM393 wide voltage comparator. Adopt SW-18010P vibration sensor. 4. Used for various vibration triggering functions, reporting burglary alarms, smart cars, electronic building blocks, etc. Specifications: Type: Normally Open Working voltage: 3.3 V - 5 V. Output form: digital switch output (0 and 1) Small board PCB size: 37 mm x 14 mm x 7 mm Total length: 55 mm Module usage: 1. When the product does not shock, the vibration switch is in the off state, the output terminal outputs a high level, and the green light does not shine. When the product is shock, the vibration switch is turned on instantly, the output end outputs low level, and the green indicator light is on. 3. The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting whether the environment has vibration and playing an alarm role. Module wiring instructions: 1.VCC: Power Supply + 2.GND: power supply - 3.DO: digital signal output 4.AO: This function is invalid with this vibration sensor. Package includes: 10 x vibration sensors. 1 x 40-pin male and female DuPont cable
Product Features
- Basic functions: the working voltage of 3.3 V - 5 V; output form: digital switching output (0 and 1)
- Easy InstallationThis is an open type vibration sensor module. A fixed screw holes for easy installation.
- APPLICATION:Used for various vibration trigger functions, report burglary alarms, smart cars, electronic building blocks, etc.
- Accepted device: use the LM393 wide voltage comparator, accept SW-18010P vibration sensor.
- Good overall performance: the comparator output, signal clean, good waveform, driving ability is strong, for more than 15mA.
More Images
Youmile 10pcs High Sensitive Vibration Switch Sensor Module SW-18010P Alarm Sensor Module Vibration Module with DuPont Cable for Arduino
Youmile 10pcs High Sensitive Vibration Switch Sensor Module SW-18010P Alarm Sensor Module Vibration Module with DuPont Cable for Arduino
Product description: Description: 1. A fixed bolt holes for easy installation. 2. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA. 3. Use the LM393 wide voltage comparator. Adopt SW-18010P vibration sensor. 4. Used for various vibration triggering functions, reporting burglary alarms, smart cars, electronic building blocks, etc. Specifications: Type: Normally Open Working voltage: 3.3 V - 5 V. Output form: digital switch output (0 and 1) Small board PCB size: 37 mm x 14 mm x 7 mm Total length: 55 mm Module usage: 1. When the product does not shock, the vibration switch is in the off state, the output terminal outputs a high level, and the green light does not shine. When the product is shock, the vibration switch is turned on instantly, the output end outputs low level, and the green indicator light is on. 3. The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting whether the environment has vibration and playing an alarm role. Module wiring instructions: 1.VCC: Power Supply + 2.GND: power supply - 3.DO: digital signal output 4.AO: This function is invalid with this vibration sensor. Package includes: 10 x vibration sensors. 1 x 40-pin male and female DuPont cable
Product Features
- Basic functions: the working voltage of 3.3 V - 5 V; output form: digital switching output (0 and 1)
- Easy InstallationThis is an open type vibration sensor module. A fixed screw holes for easy installation.
- APPLICATION:Used for various vibration trigger functions, report burglary alarms, smart cars, electronic building blocks, etc.
- Accepted device: use the LM393 wide voltage comparator, accept SW-18010P vibration sensor.
- Good overall performance: the comparator output, signal clean, good waveform, driving ability is strong, for more than 15mA.
