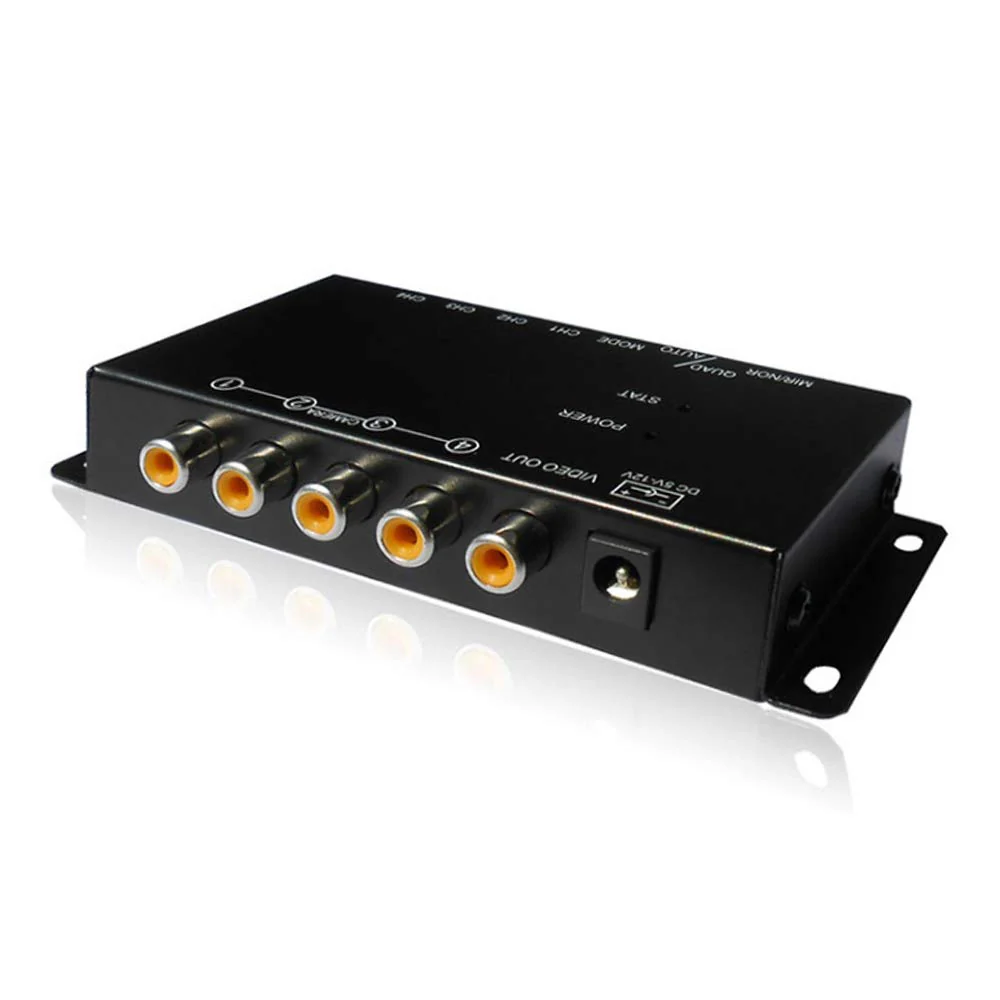

SaiDian 1Pcs Video Quad Splitter 4-Way Mini Processor Multiplexer Switcher for CCTV Security Camera

SaiDian 1Pcs Video Quad Splitter 4-Way Mini Processor Multiplexer Switcher for CCTV Security Camera

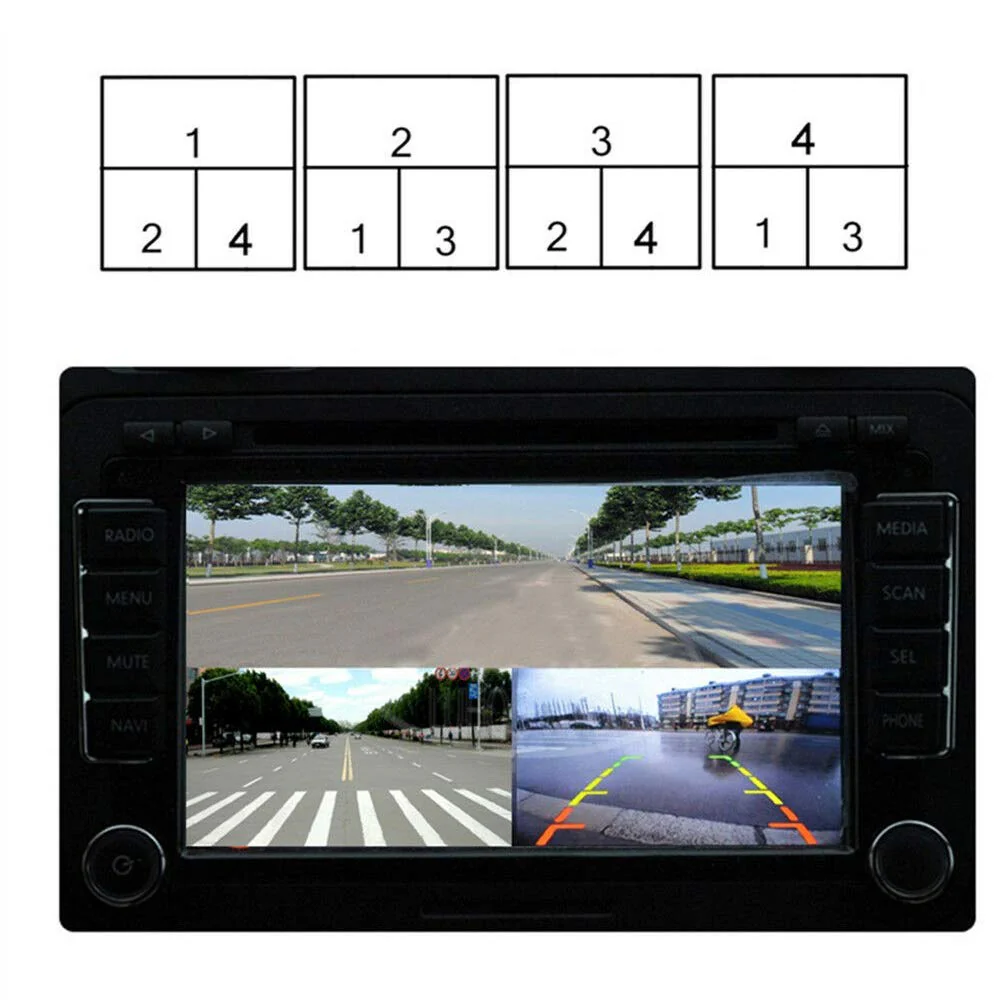

Operation Temperature: 0℃~ +50℃ Product Size: 107x53x21mm .br> Power-off memory function: 1. Long press the "CH4" button to turn on the phone and enable the power-off memory function. Then select the desired multi-picture mode. The device memorizes the status of the multi-screen mode, and it is the last multi-screen mode state when it is turned on. Other functions of the device are normal and unchanged. 2. Long press the "CH3" button to turn on the phone, and enable to switch to the automatic video screen for startup. Note: Please use 5-12V car power or connect the cigarette lighter ,If you need to connect to ACC or battery please cooperate with wide voltage power supply box;If you need to show the picture of reverse the car , Control box of power supply connect to the backup light. Package Includes: 1Pcs

Product Features

• 4 Channels Real-time Video Display
• TV System: NTSC/PAL;Image Resolution: PAL: 720576; NTSC: 720480;Frame Rate: 25f/s (PAL) ; 30f/s (NTSC)
• Video Input: 4x RCA;Peak value: 1Vp-p, impedance: 75 ;Video Output: 1x RCA;Peak value: 1Vp-p, impedance: 75
• Power Input: DC5V-15V;Power :2.5W
• Note: this video processor is only compatible with analog cctv cameras.
