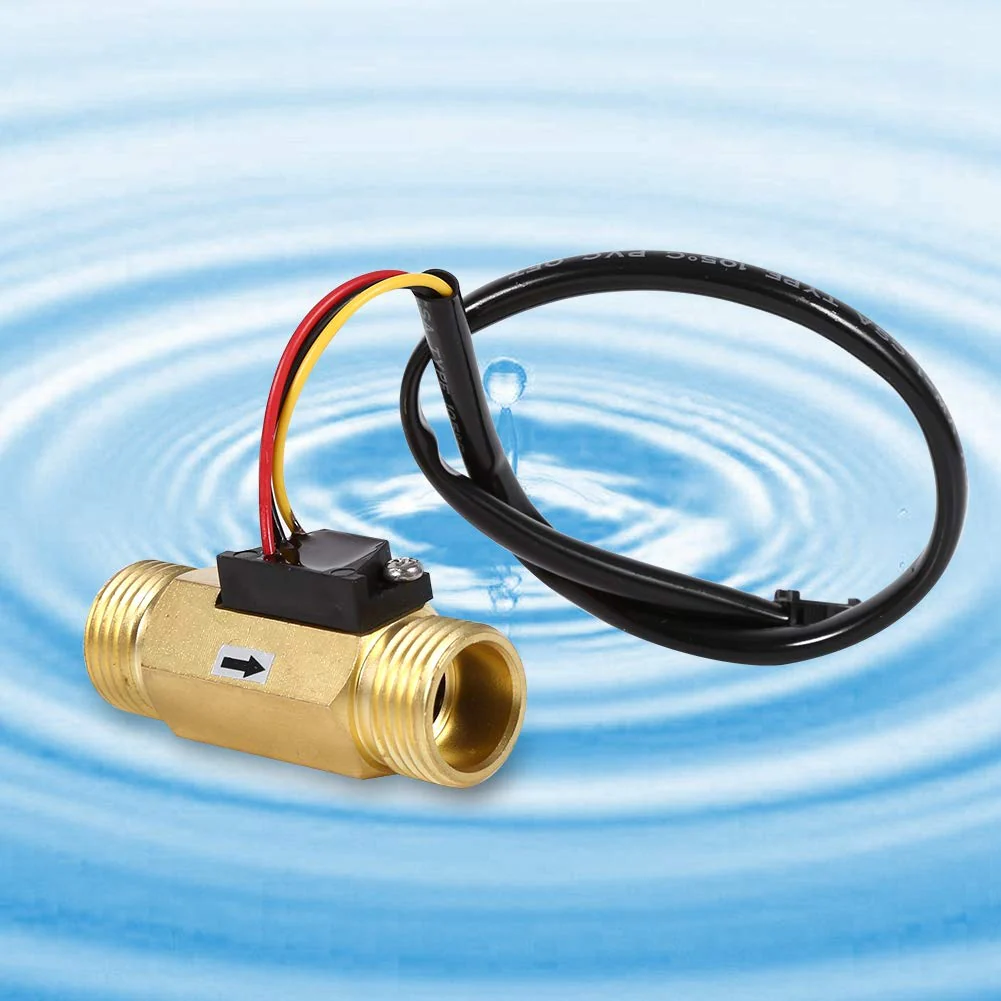

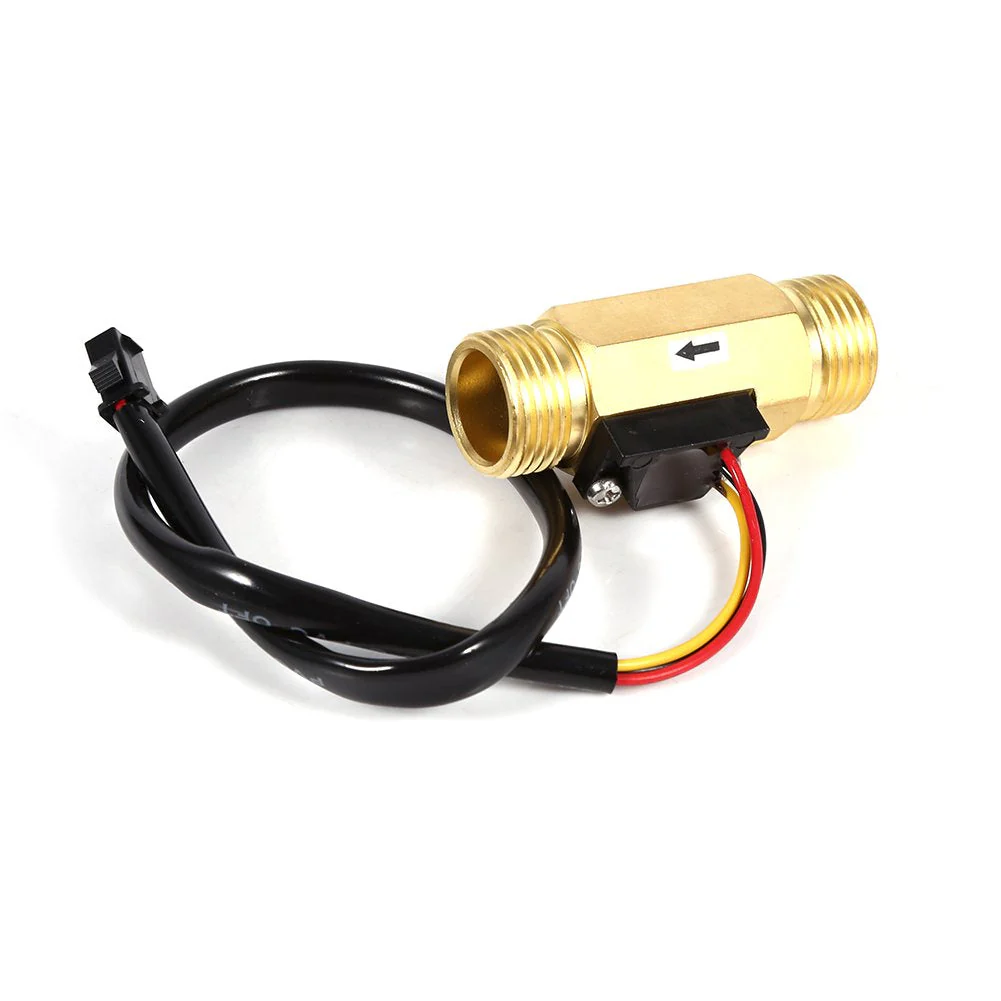

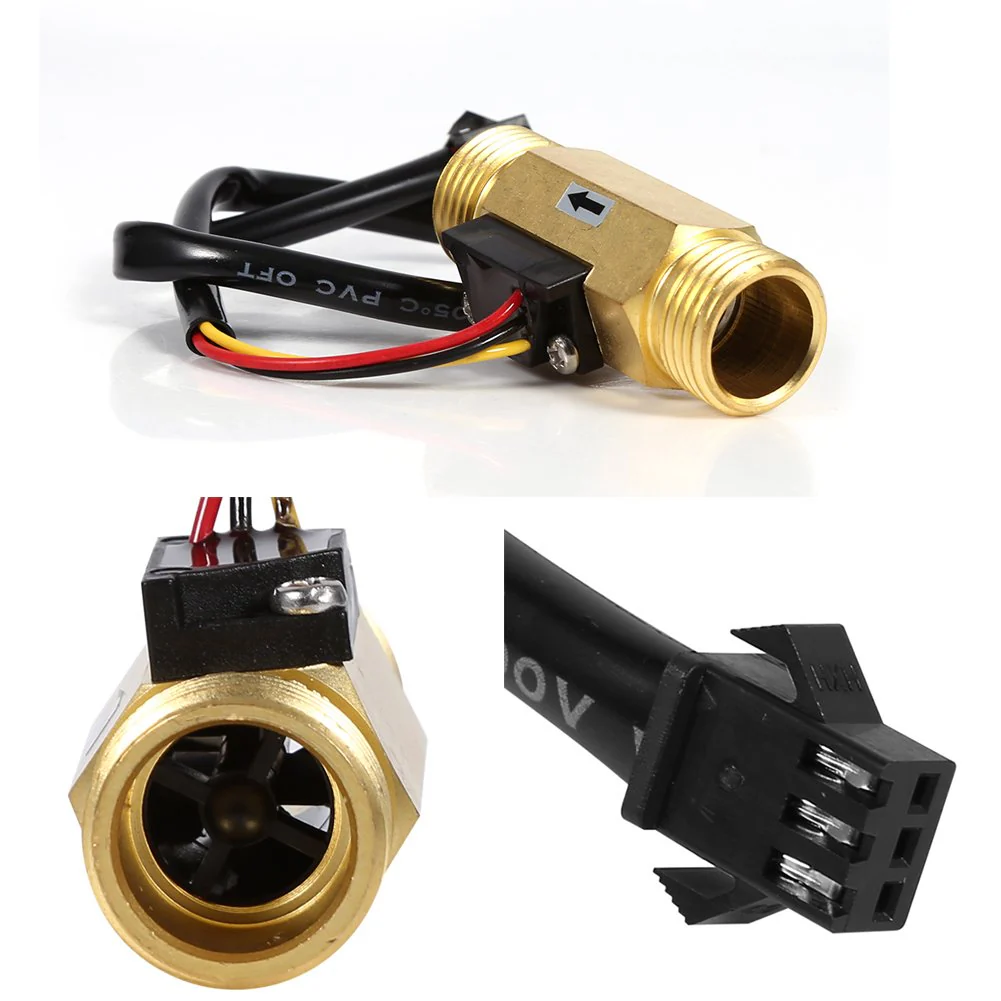

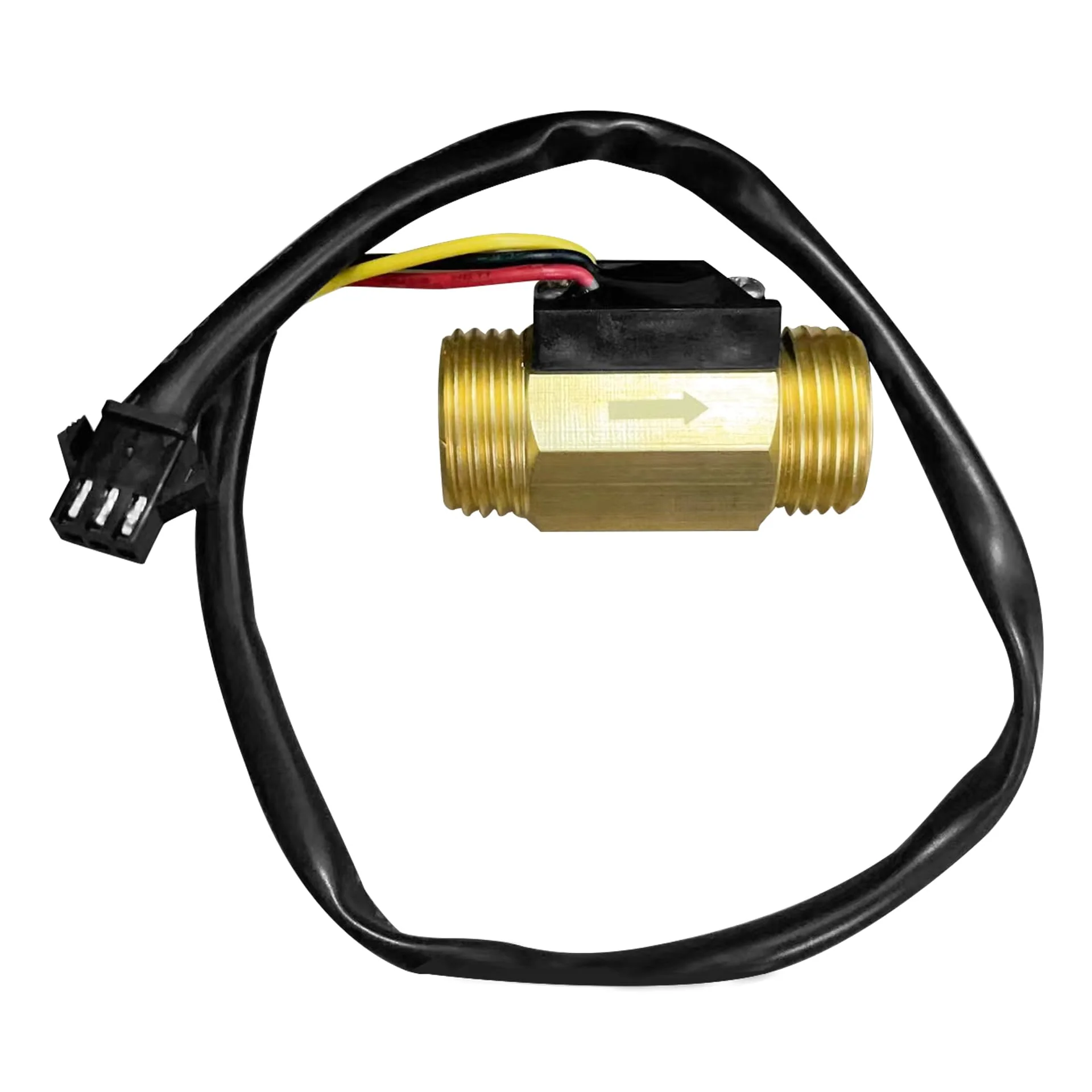

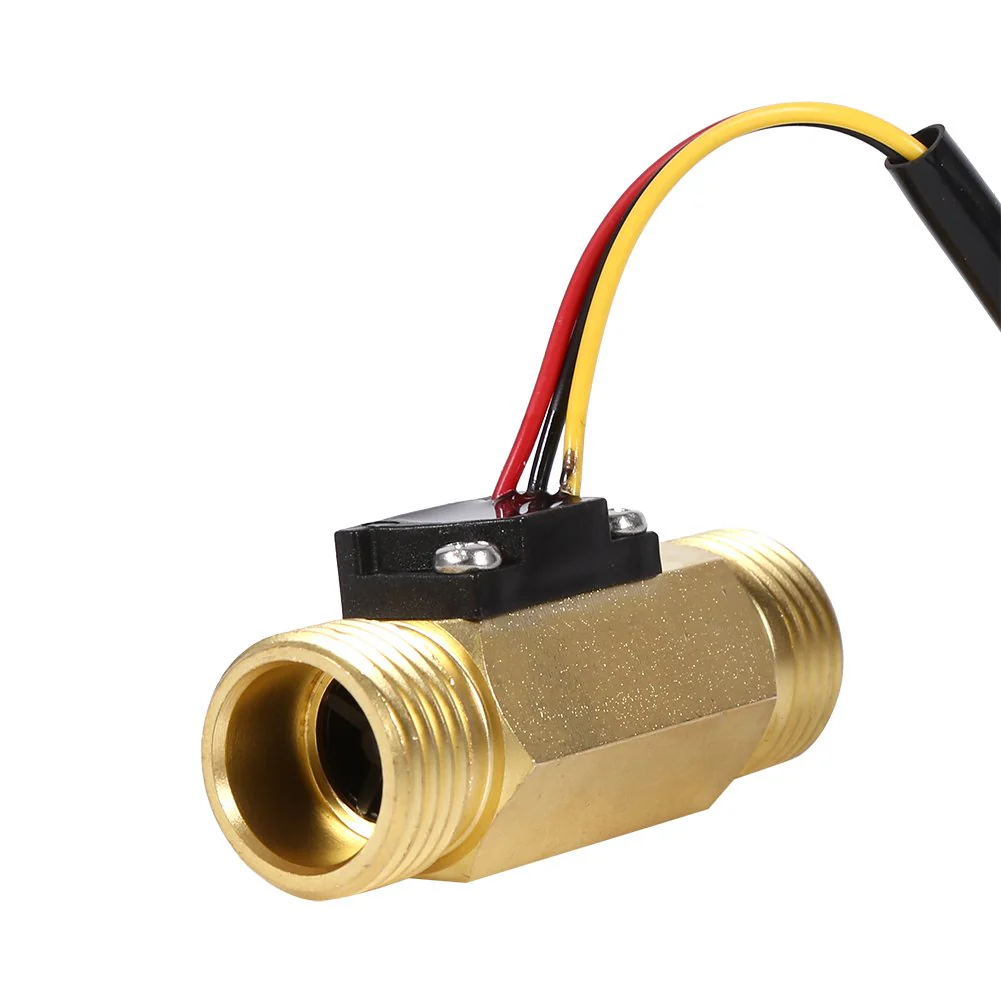

Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter

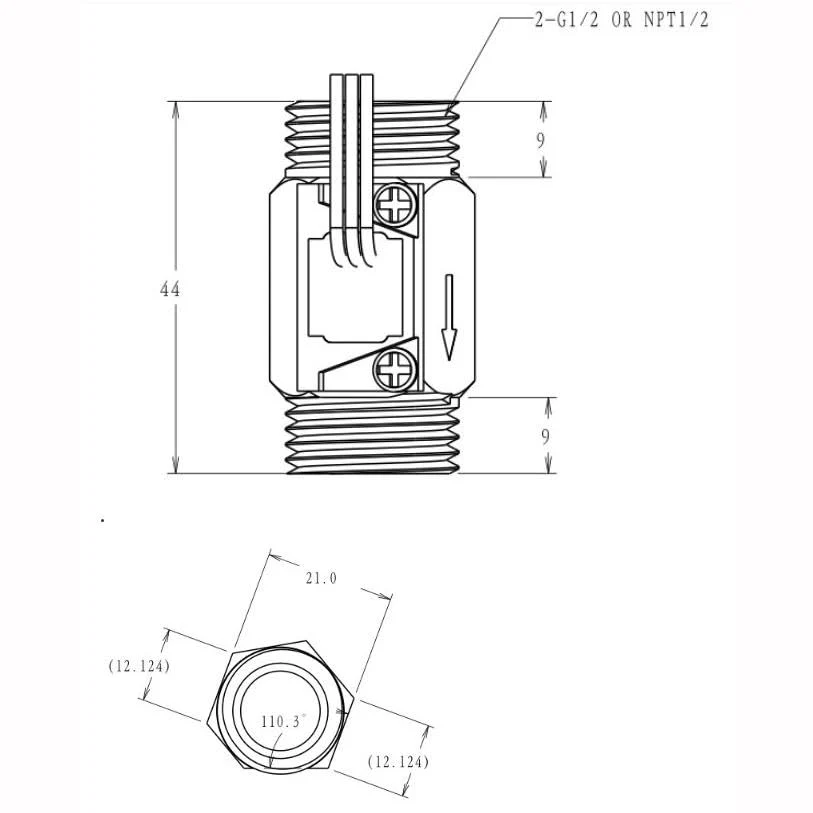

Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.

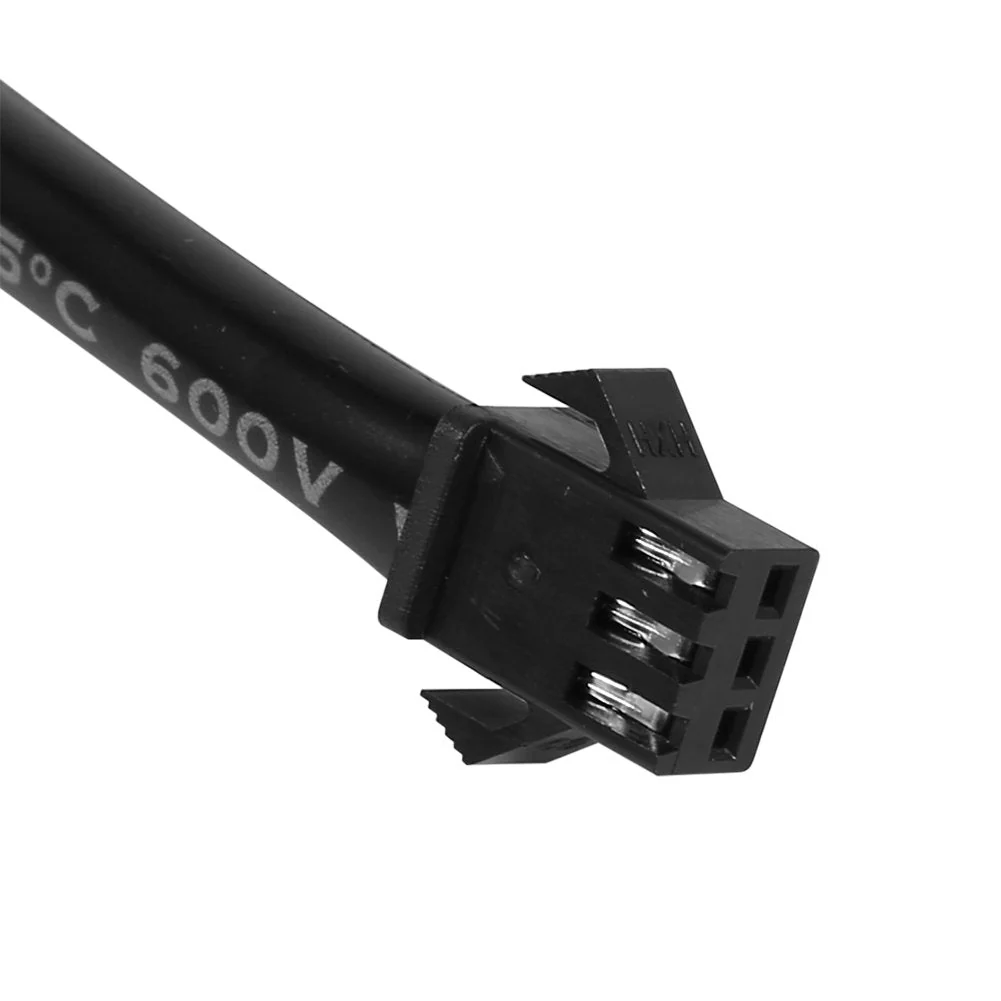

- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
More Images
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.
- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.
- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
