Mini Stereo 4 Channel Line Mixer Headphone Monitoring Club Live Studio Recording
Mini Stereo 4 Channel Line Mixer Headphone Monitoring Club Live Studio Recording

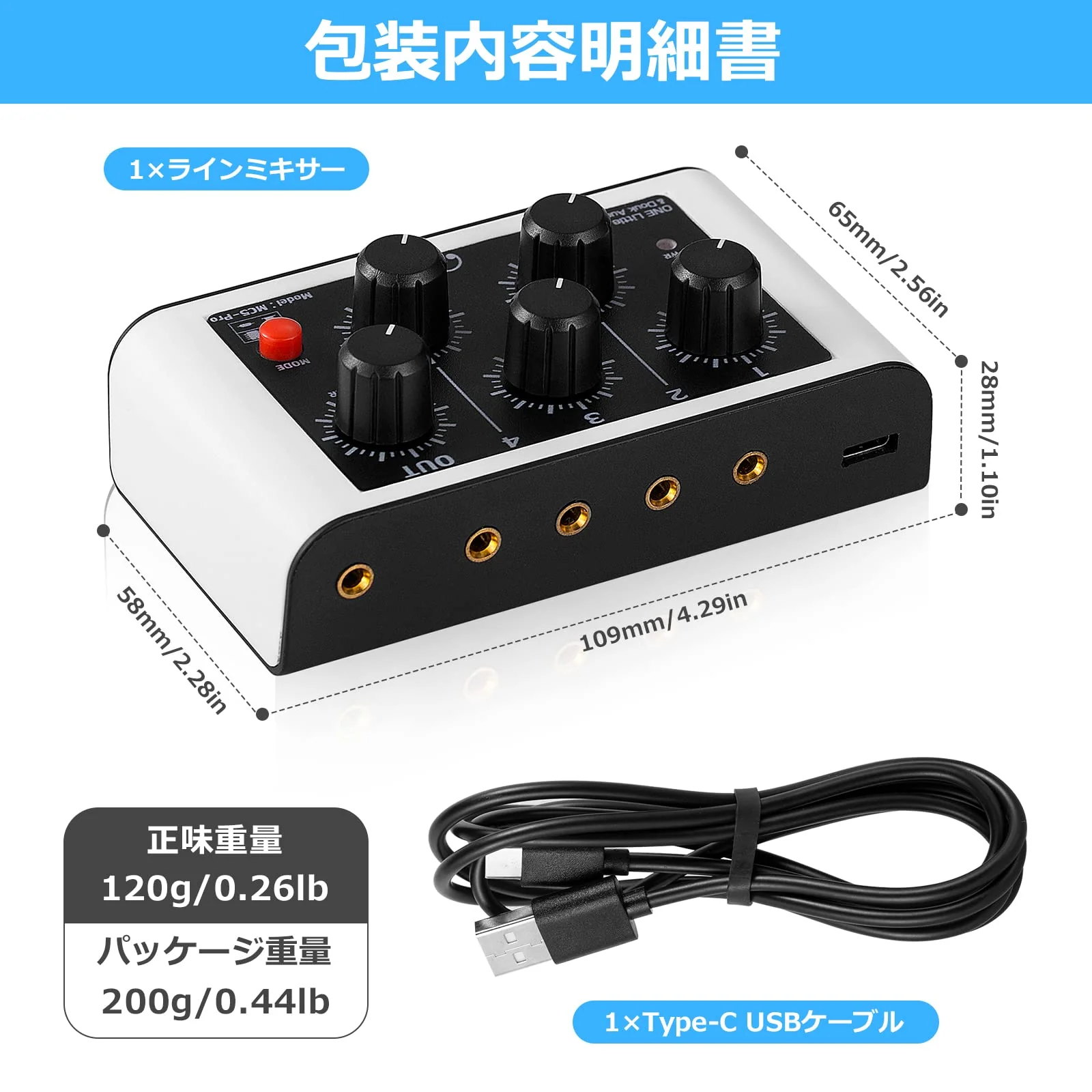

Warm Tips 1. In active mode, please use independent USB power supply to power MC5 pro, cannot share the same power supply with audio device, or else common ground noise will be caused. 2. The 3.5mm headphone jack output is prior, 3.5mm AUX output on the back panel will auto disconnect if headphone is inserted. 3. Recommend to use active mode if want to connect headphone for monitoring, or else the output sound will be very small. 4. Please keep wireless device such as WIFI or phone away from MC5 PRO, or else noise may be caused. 5. MC5 PRO only supports standard audio signal such as CD / DVD / phone, cannot connect phono turntables or MIC directly. Parameters Audio input: 4 groups of 3.5mm AUX Audio output: 1× 3.5mm AUX / 1× 3.5mm headphone jack (cannot output at the same time) Passive mode: No power required, passive control. Input impedance: 50KΩ Output impedance: 4.7KΩ Active mode: Working voltage: DC 5V (≥0.5A) Power interface: Type-C USB Output impedance: 3Ω Dimensions(LWH): 1096528mm / 4.292.561.10in (not including knobs) Net weight: 120g / 0.26lb Package weight: 200g / 0.44lb Packing List 1×Line Mixer 1×Type-C USB Cable
Product Features

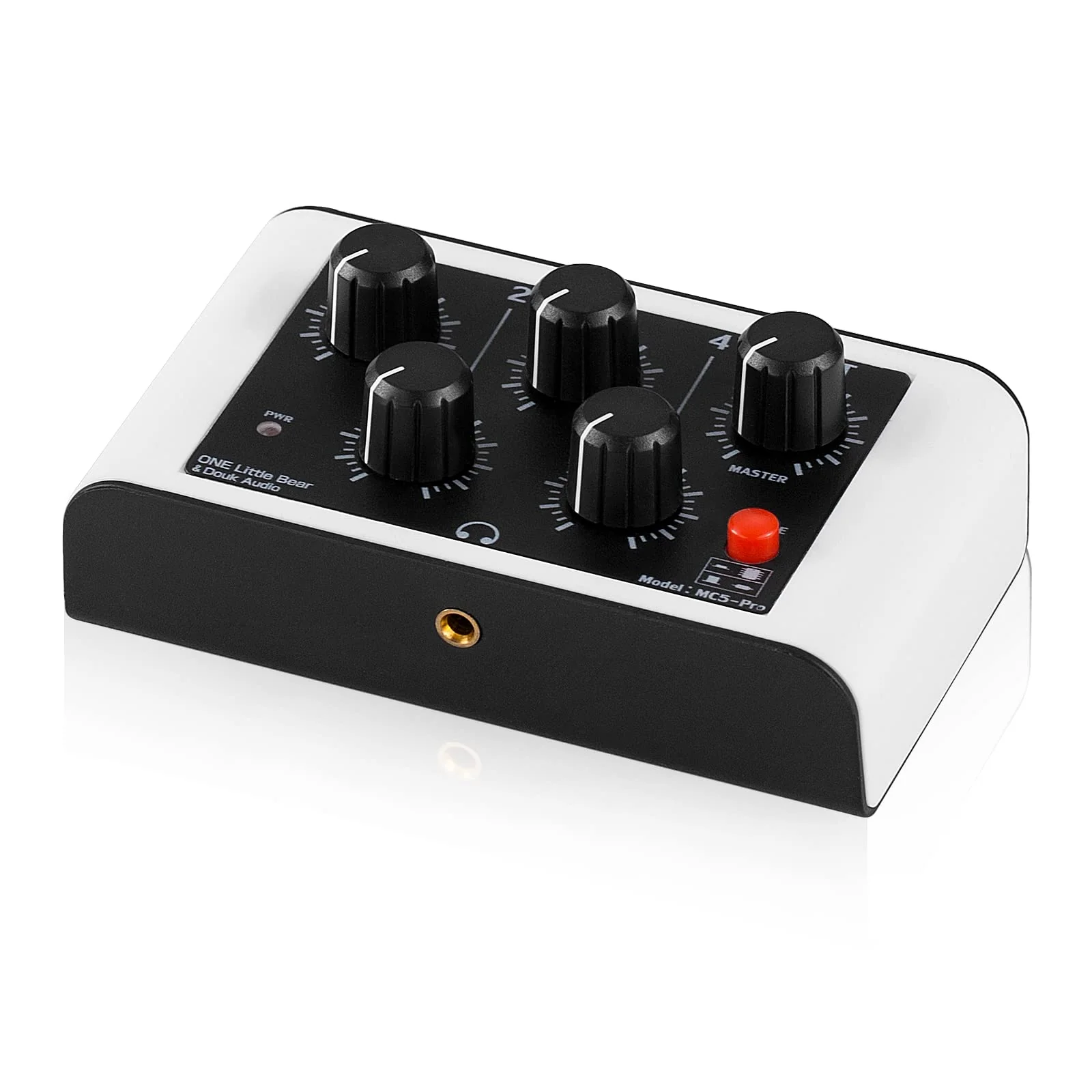

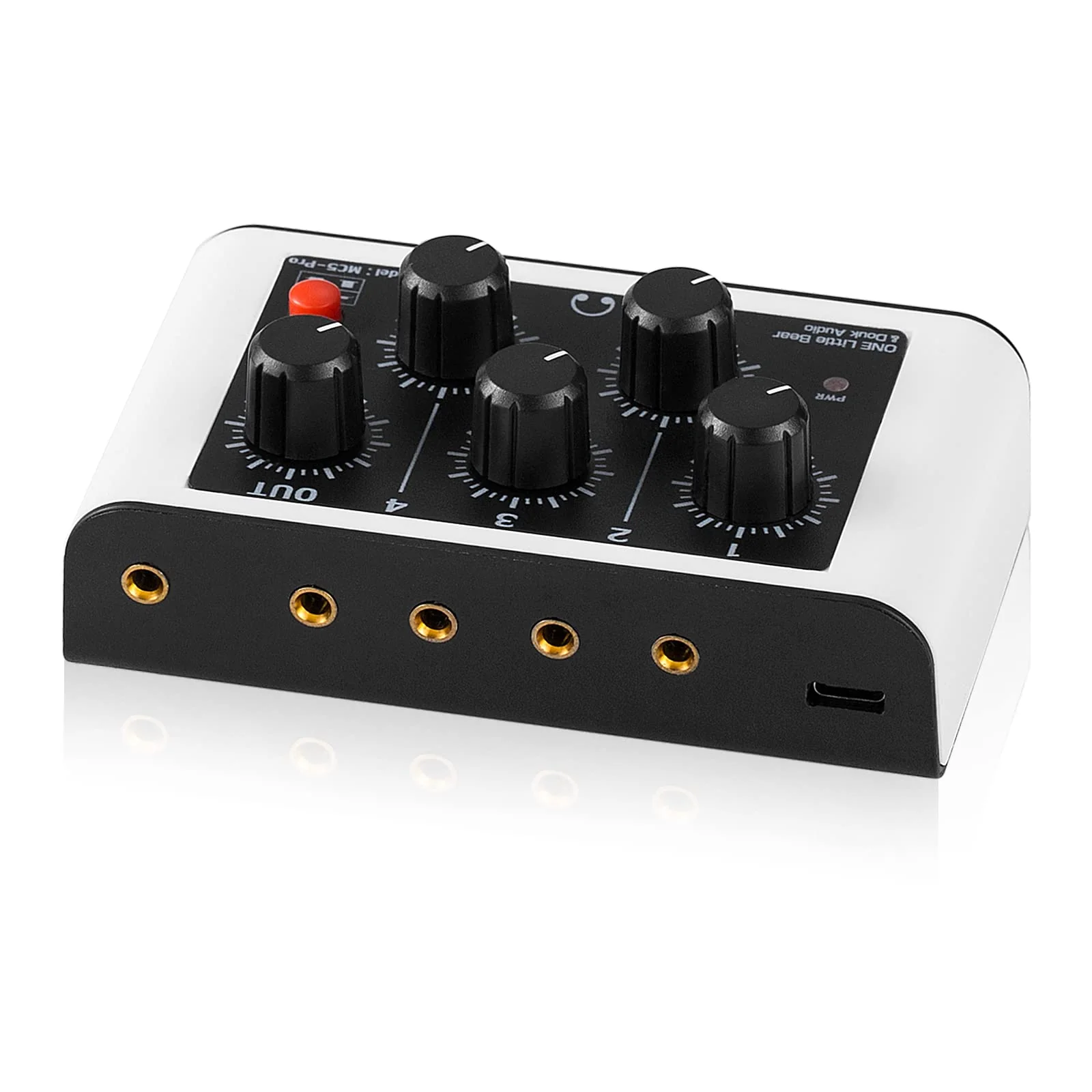

- MC5 PRO is a mini audio mixer with 4 groups of 3.5mm inputs, 1 group 3.5mm AUX output and 3.5mm headphone jack output, which is capable of mixing the signals from CD players, instruments, portable recording devices, video playback devices and so on.
- MC5 PRO supports two working modes to satisfy different requirements: 1. Active mode: need to connect independent USB power, built-in audio amp chip will work, amplify the mixed audio signal and output larger power, can connect headphones to monitor music directly via the 3.5mm headphone jack.
- 2. Passive mode: no power required, MC5 PRO will work in the state of pure resistance attenuation, output audio signal will be a little attenuated. And the headphone jack output will not support headphone monitoring directly but need to add a headphone amp.

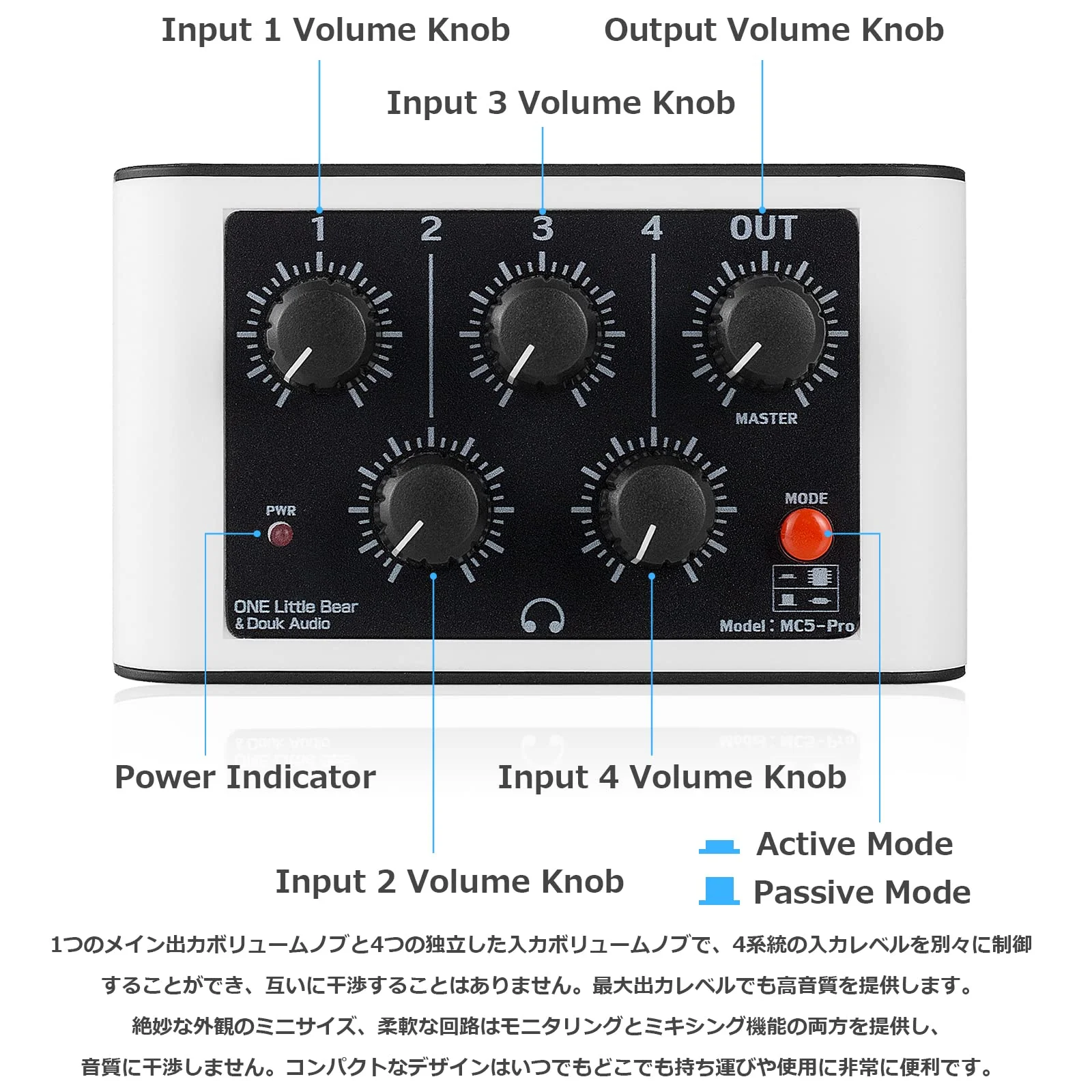

- With one main output volume knob and four independent input volume knob, the input level of 4 groups can be controlled separately, have no interference to each other. Providing the highest sonic quality even at maximum output level.
- Mini size with exquisite appearance, flexible circuit both provides monitoring and mixing functions, and wont make interference to the sound quality, compact design is very convenient to carry and use any time any where.
Original: $148.80
-70%$148.80
$44.64More Images
Mini Stereo 4 Channel Line Mixer Headphone Monitoring Club Live Studio Recording
Mini Stereo 4 Channel Line Mixer Headphone Monitoring Club Live Studio Recording
Warm Tips 1. In active mode, please use independent USB power supply to power MC5 pro, cannot share the same power supply with audio device, or else common ground noise will be caused. 2. The 3.5mm headphone jack output is prior, 3.5mm AUX output on the back panel will auto disconnect if headphone is inserted. 3. Recommend to use active mode if want to connect headphone for monitoring, or else the output sound will be very small. 4. Please keep wireless device such as WIFI or phone away from MC5 PRO, or else noise may be caused. 5. MC5 PRO only supports standard audio signal such as CD / DVD / phone, cannot connect phono turntables or MIC directly. Parameters Audio input: 4 groups of 3.5mm AUX Audio output: 1× 3.5mm AUX / 1× 3.5mm headphone jack (cannot output at the same time) Passive mode: No power required, passive control. Input impedance: 50KΩ Output impedance: 4.7KΩ Active mode: Working voltage: DC 5V (≥0.5A) Power interface: Type-C USB Output impedance: 3Ω Dimensions(LWH): 1096528mm / 4.292.561.10in (not including knobs) Net weight: 120g / 0.26lb Package weight: 200g / 0.44lb Packing List 1×Line Mixer 1×Type-C USB Cable
Product Features
- MC5 PRO is a mini audio mixer with 4 groups of 3.5mm inputs, 1 group 3.5mm AUX output and 3.5mm headphone jack output, which is capable of mixing the signals from CD players, instruments, portable recording devices, video playback devices and so on.
- MC5 PRO supports two working modes to satisfy different requirements: 1. Active mode: need to connect independent USB power, built-in audio amp chip will work, amplify the mixed audio signal and output larger power, can connect headphones to monitor music directly via the 3.5mm headphone jack.
- 2. Passive mode: no power required, MC5 PRO will work in the state of pure resistance attenuation, output audio signal will be a little attenuated. And the headphone jack output will not support headphone monitoring directly but need to add a headphone amp.
- With one main output volume knob and four independent input volume knob, the input level of 4 groups can be controlled separately, have no interference to each other. Providing the highest sonic quality even at maximum output level.
- Mini size with exquisite appearance, flexible circuit both provides monitoring and mixing functions, and wont make interference to the sound quality, compact design is very convenient to carry and use any time any where.
