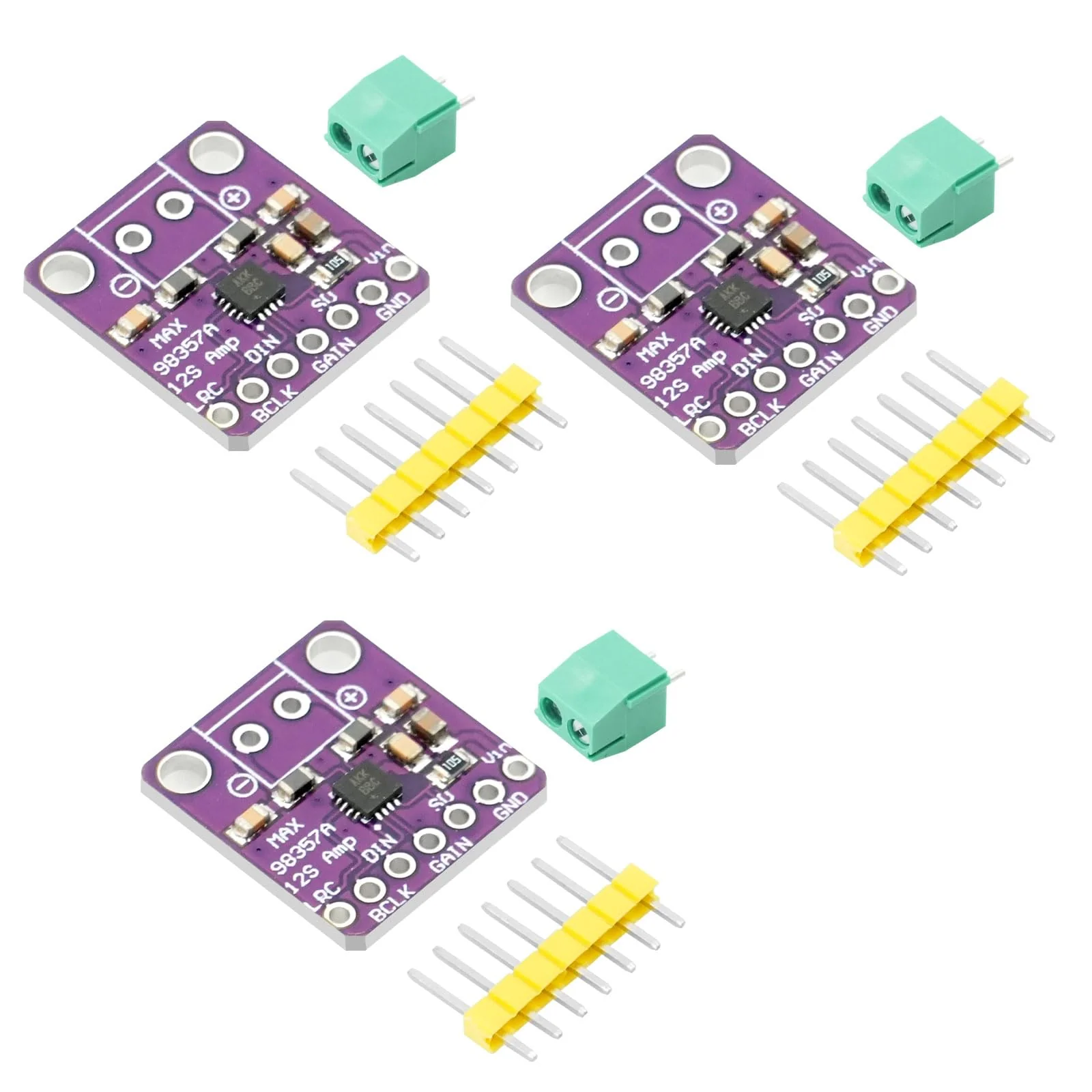

MAX98357 I2S 3W Class D Audio Amplifier Module AYWHP 3 Pieces DAC Decoder Module Audio Board I2S DAC Decoder Breakout Module Filterless Audio AMP Board for Arduino
MAX98357 I2S 3W Class D Audio Amplifier Module AYWHP 3 Pieces DAC Decoder Module Audio Board I2S DAC Decoder Breakout Module Filterless Audio AMP Board for Arduino
MAX98357 I2S 3W Class D Audio Amplifier Module AYWHP 3 Pieces DAC Decoder Module Audio Board I2S DAC Decoder Breakout Module Filterless Audio AMP Board for Arduino
Description: The MAX98357 Audio Amplifier Mode is a high-performance solution for DIY enthusiasts and embedded audio engineers. With the MAX98357A audio decoder chip, the board features a highly efficient Class D amplifier architecture that delivers a crystal clear, distortion-free 3W output from a 3-5V power supply and meets the requirements of small speakers, smart homes, in-car audio and portable devices. Thanks to its filterless design, the board saves space on the board and reacts faster to high-frequency details, making your audio productions more realistic and full-bodied. The MAX98357 audio amplifier mode supports standard digital I2S audio inputs and can be seamlessly connected to host boards (such as Arduino, Raspberry Pi, ESP32, STM32, etc.) via a 4-pin plug, which allows the analog level transmission connected noise problems can be eliminated seamlessly. Parameters: Operating voltage: 2.5 V - 5.5 V (5 V recommended). Output power: 3 W. Impedance: 4 - 8 ohms. Logic level: 3.3 V/5 V. Interface: I2S Connection: LRC: frame clock, left/right clock for I2S and LJ mode, sync clock for TDM mode. BCLK: bit clock input DIN: digital input signal. GAIN: reinforcement and channel selection SD: Shutdown and channel selection SD_MODE low drag to put the device into shutdown state GND: power supply. Specification: Dimensions: 19 x 18 x 3 mm. Weight: 3 g. Product included: 3 x MAX98357 audio amplifier mode.
Product Features
- Strong performance: MAX98357 audio amplifier mode built-in MAX98357A chip, with Class D amplifier architecture to achieve pure, high-fidelity 3W output
- Flexible controlClass D amplifier, selectable gain: 3dB/6dB/9dB/12dB/15dB.
- Plug and play: the power supply MAX98357 audio amplifier mode can be automatically configured with 35 different clocks and 128 digital audio formats.
- Strong anti-interference: MAX98357 audio amplifier mode uses digital inputs with high anti-interference and high jitter tolerance. It also offers EMI suppression and allows speaker connectivity.
- Widely compatible: saves space for external components and responds quickly to high-frequency details, making it suitable for DIY enthusiasts and audio-technical applications that require high sound quality.
Original: $83.52
-70%$83.52
$25.06More Images
