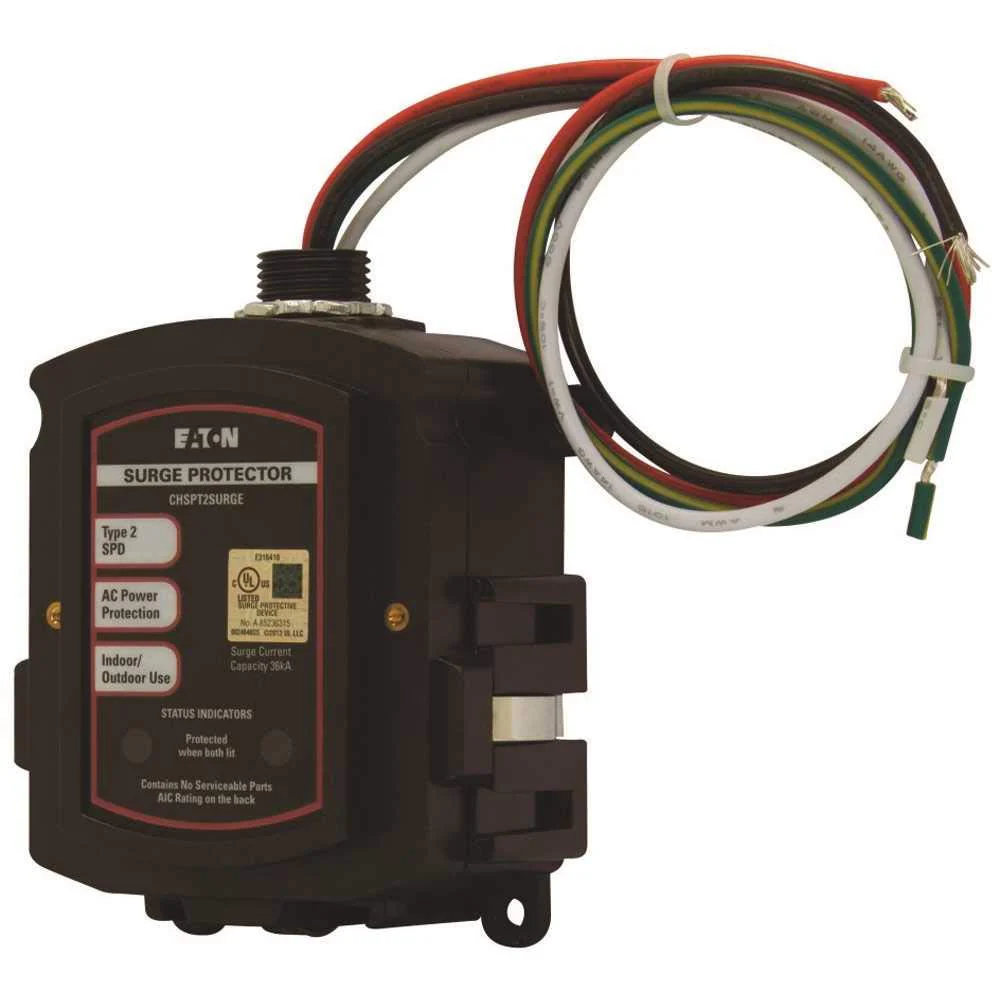

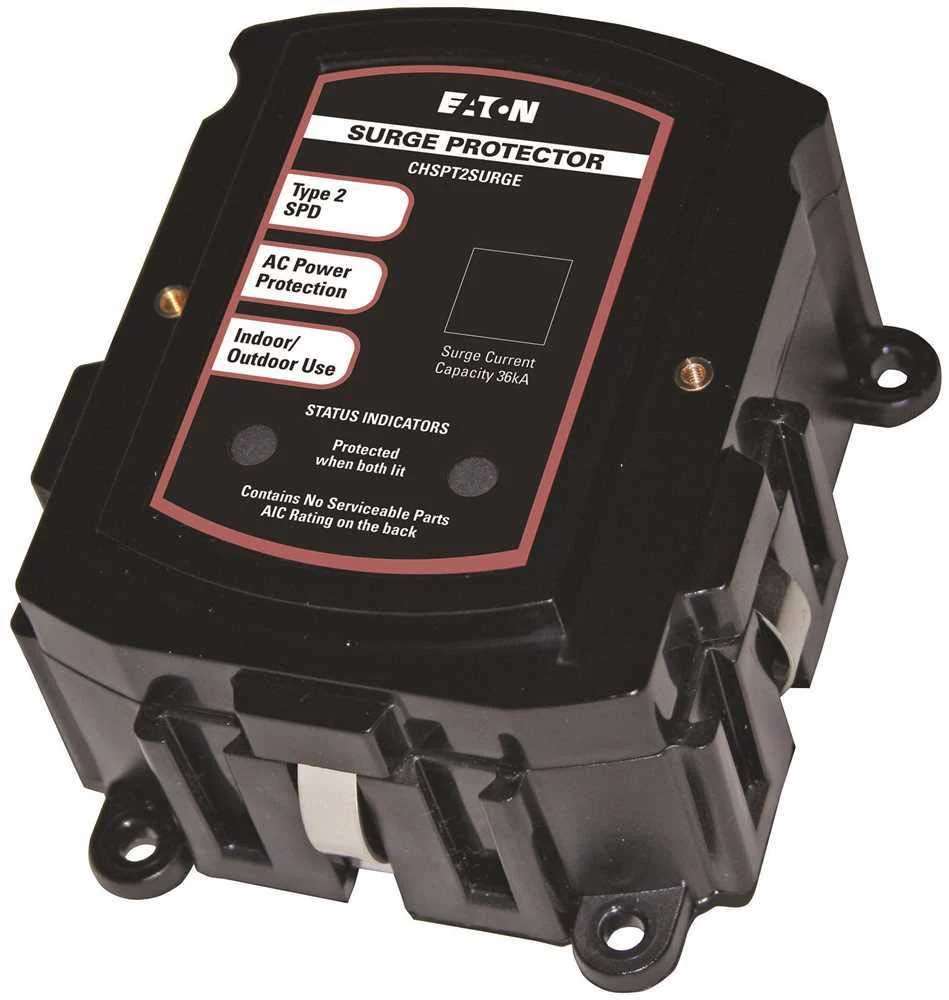

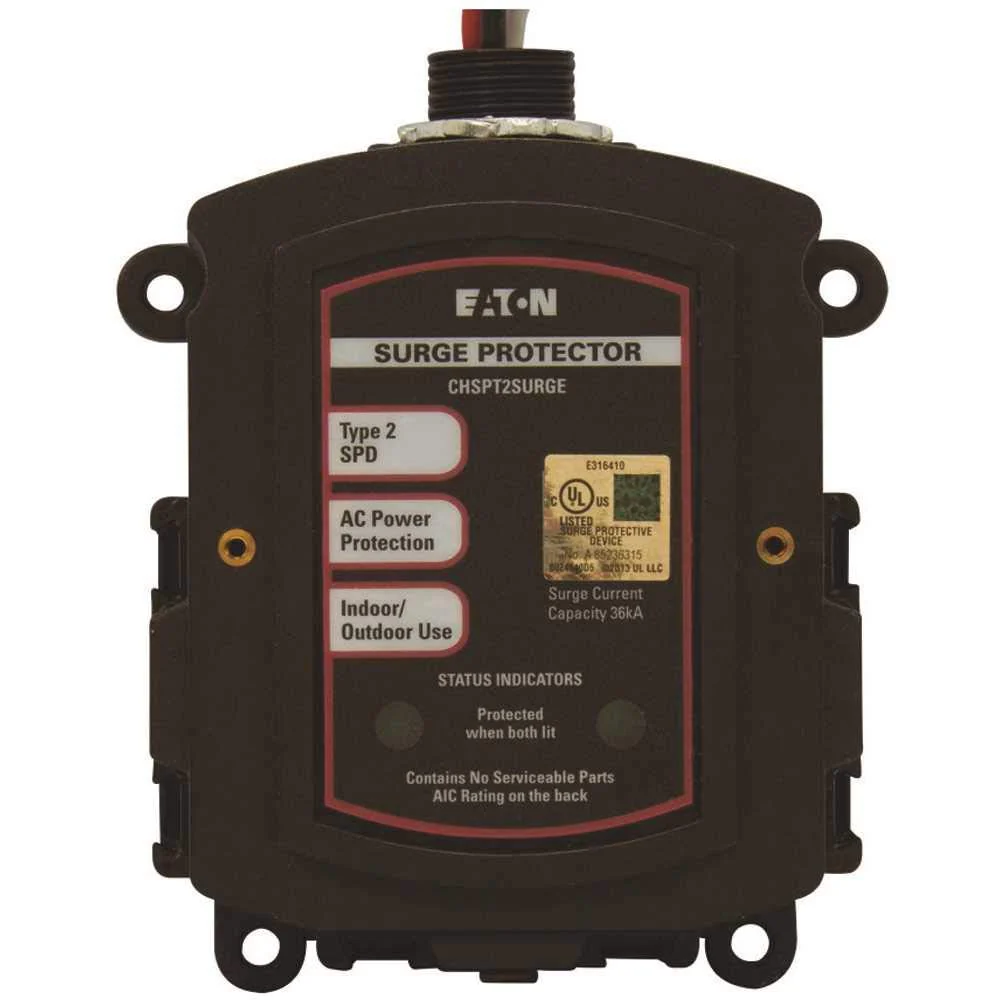

Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Product Features AC power protection Universally connects to any manufacturer’s load center (breaker box) Quick connect design—easy to mount cable protection modules LED status indication^^Connection Can be attached to the outside of any manufacturer’s load center (breaker box). This product should be connected on the load side of the load center main service disconnect through a dedicated circuit breaker (follow NEC Guidelines).^^Enclosure^NEMA 4^^Voltage^120/240 VAC rated line voltage^^Phase Single^^Frequency (Hz)^60^^Maximum Continuous Operating Voltage^150 V L–N, 300 V L–L^^Voltage Protection Rating^600 V L–N, 1000 V L–L, 800 V N–G, 600 V L–G^^Nominal Discharge Current^5kA^^Surge Current Capacity^22 kA^^Surge Current Capacity, Per Phase Rating^36 kA (L1–N 18 kA, L1–G 18 kA, L2–N 18 kA, L2–G 18 kA).
Product Features
- Ac power protection
- Universally connects to any manufacturers load center (breaker box)
- Quick connect designeasy to mount cable protection modules
- Country of origin: China
Original: $210.56
-70%$210.56
$63.17More Images
Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Product Features AC power protection Universally connects to any manufacturer’s load center (breaker box) Quick connect design—easy to mount cable protection modules LED status indication^^Connection Can be attached to the outside of any manufacturer’s load center (breaker box). This product should be connected on the load side of the load center main service disconnect through a dedicated circuit breaker (follow NEC Guidelines).^^Enclosure^NEMA 4^^Voltage^120/240 VAC rated line voltage^^Phase Single^^Frequency (Hz)^60^^Maximum Continuous Operating Voltage^150 V L–N, 300 V L–L^^Voltage Protection Rating^600 V L–N, 1000 V L–L, 800 V N–G, 600 V L–G^^Nominal Discharge Current^5kA^^Surge Current Capacity^22 kA^^Surge Current Capacity, Per Phase Rating^36 kA (L1–N 18 kA, L1–G 18 kA, L2–N 18 kA, L2–G 18 kA).
Product Features
- Ac power protection
- Universally connects to any manufacturers load center (breaker box)
- Quick connect designeasy to mount cable protection modules
- Country of origin: China
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Eaton CHSPT2SURGE SPD Type 2 Chsp Whole Home Surge Protector, Nema 4, Single Phase, 120/240 Volts, Ul 1449 3Rd Edition
Product Features AC power protection Universally connects to any manufacturer’s load center (breaker box) Quick connect design—easy to mount cable protection modules LED status indication^^Connection Can be attached to the outside of any manufacturer’s load center (breaker box). This product should be connected on the load side of the load center main service disconnect through a dedicated circuit breaker (follow NEC Guidelines).^^Enclosure^NEMA 4^^Voltage^120/240 VAC rated line voltage^^Phase Single^^Frequency (Hz)^60^^Maximum Continuous Operating Voltage^150 V L–N, 300 V L–L^^Voltage Protection Rating^600 V L–N, 1000 V L–L, 800 V N–G, 600 V L–G^^Nominal Discharge Current^5kA^^Surge Current Capacity^22 kA^^Surge Current Capacity, Per Phase Rating^36 kA (L1–N 18 kA, L1–G 18 kA, L2–N 18 kA, L2–G 18 kA).
Product Features
- Ac power protection
- Universally connects to any manufacturers load center (breaker box)
- Quick connect designeasy to mount cable protection modules
- Country of origin: China
