DTech DB9 RS232 Serial Cable Female to Female Null Modem Cord Full Handshaking 7 Wire Crossover for Data Communication (1.5 Feet, Black) 1.5ft

DTech DB9 RS232 Serial Cable Female to Female Null Modem Cord Full Handshaking 7 Wire Crossover for Data Communication (1.5 Feet, Black)

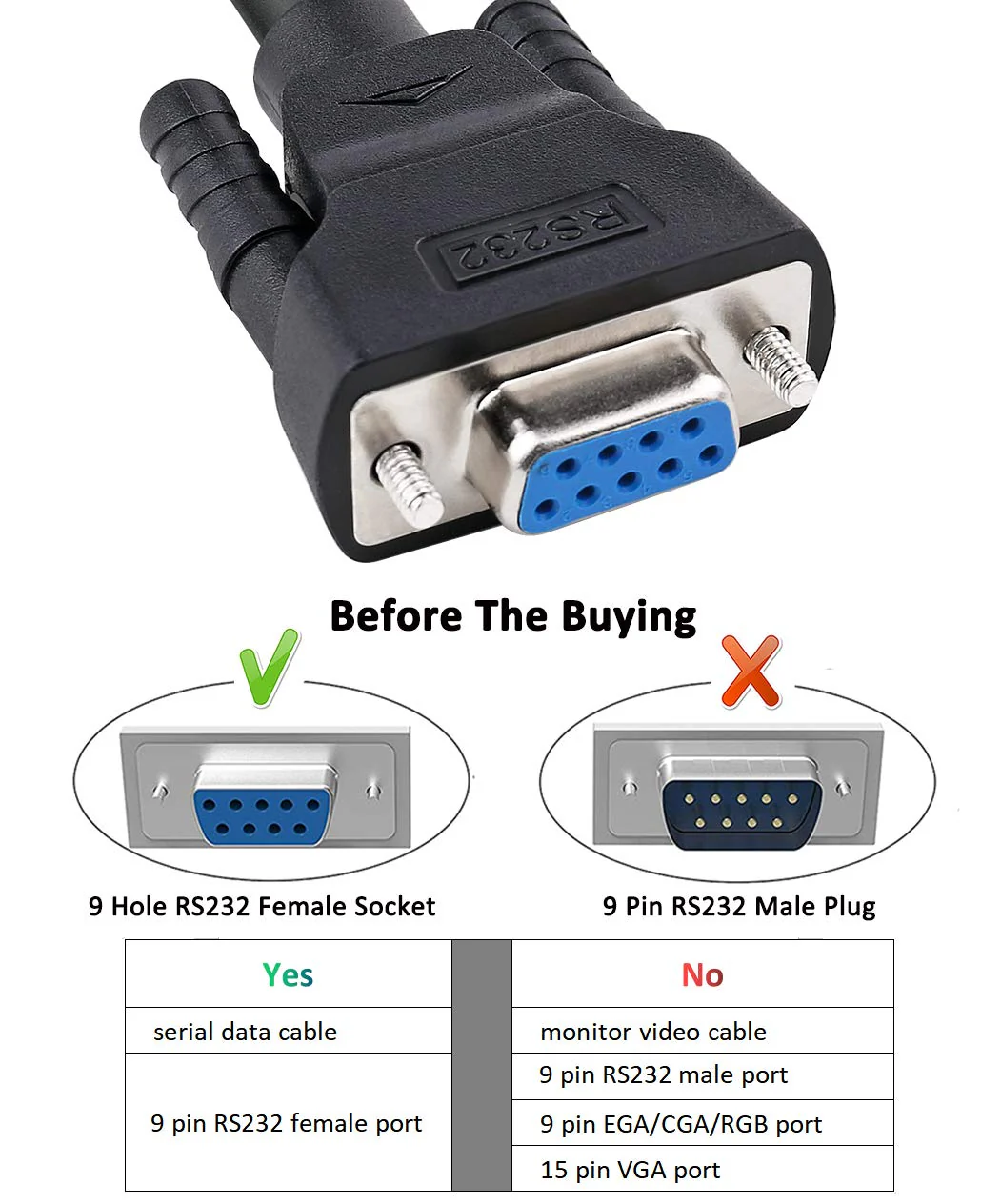

Full Handshaking Signal RS-232 Cross over Cord (All Wire Connected) Note: 1. It’s a RS232 serial crossover cable female to female port, DO NOT perform straight through function. 2. It’s not a 15 pin VGA cable to connects computer to monitor, is only for RS 232 communication port to interface one system to anther system. 3. Shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. Transfer data between two devices using a RS-232C serial communication protocol If your equipment require full wire null modem cable (full handshaking signal), take this 1.5 foot 9 pin serial null modem cable wherever you need it, it allows you to add your RS232 peripherals to an application or replace your old cross-linked cables. The serial DB9 cable female to female chord is with gold plated pins for superior corrosion resistance ensuring a solid connection. The DB-9 connectors are equipped with a pair of thumbscrews for securing the plug to the male socket. For Connecting RS232 devices below (partial): Touchscreen Telescope vinyl cutting machine Modem GPS network equipment radio transceiver stereo system subwoofer/speaker set sewing machine weather station Or controller to a remote control camera ... Item Specifications: Connectors: DB9 to DB9 female-female Connector Interface Surface: Nickel-plated Pins Surface: Gold-plated Wire Gauge: 30 AWG Cord Diameter: 6mm Cord Length: 1.5 ft (0.5 meter) Color: Black What’s Included: 1 x Serial to Serial Cable Null Modem F/F

Product Features

• 1.5ft female to female serial null modem cable (7 wire type and full handshaking) connects your computer to device with COM port RS-232 compatible interface

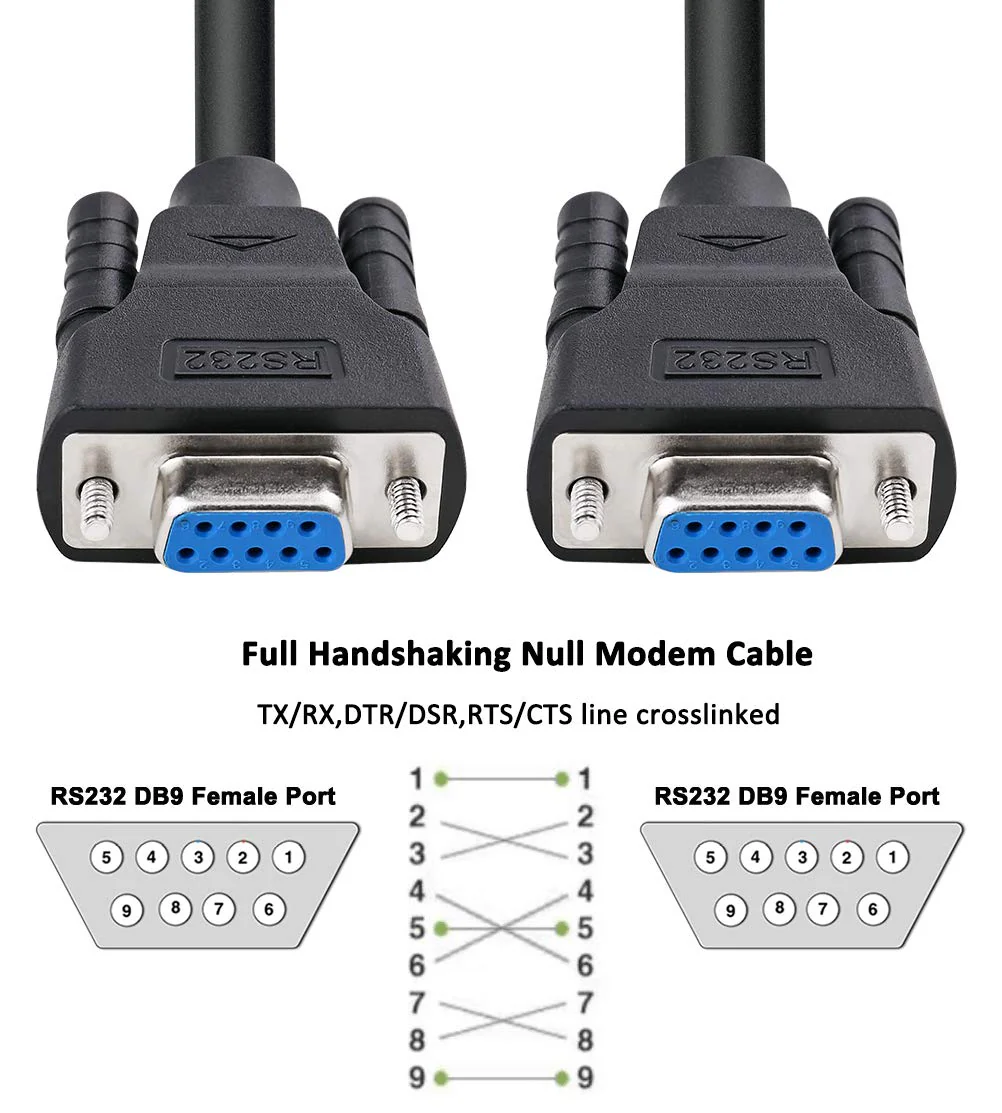

• Wired as a 9 pin serial port Null-Modem cord that 2-3, 4-6, 7-8 line are cross linked (TX,RX,RTS, CTS, DTR,DSR wires are connected); standard shielded DE9 rs232 cable female to femalewith AL foil

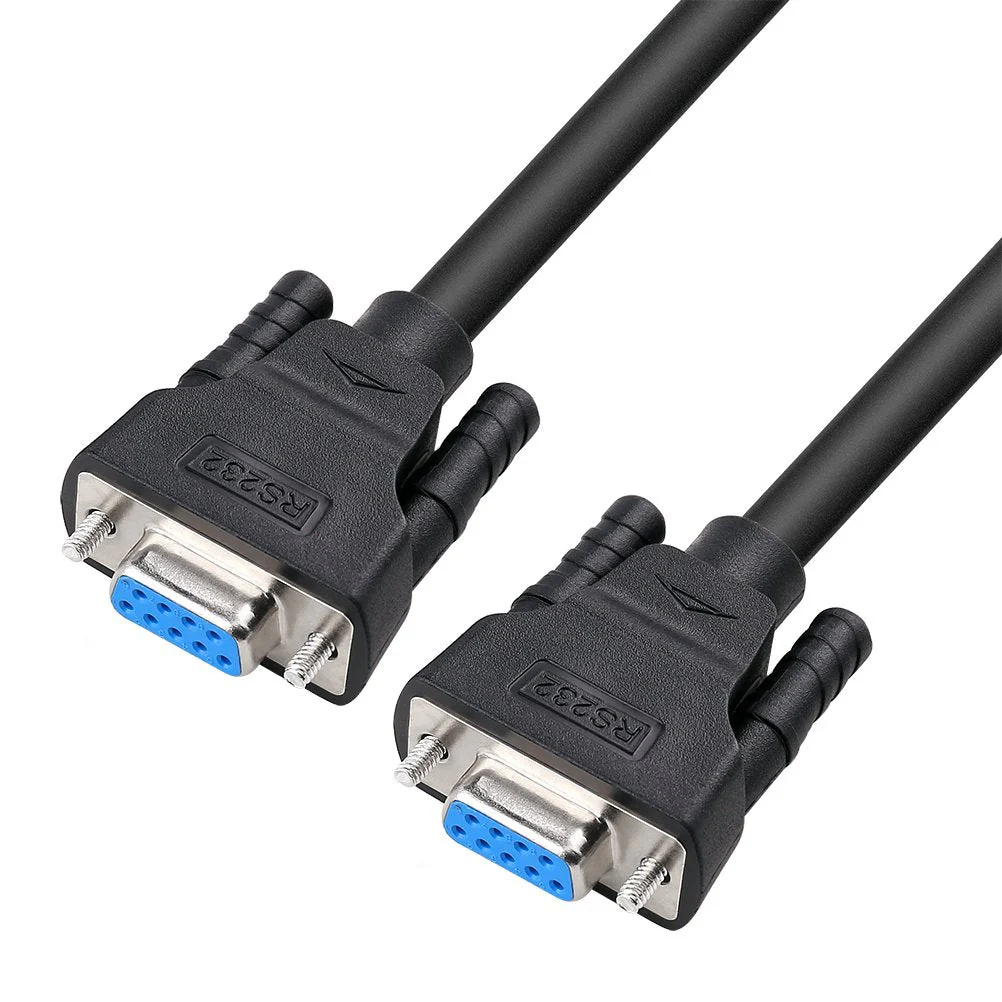

• DB9 female to female connector on each end equipped with screws to ensure an easy and solid connection for stable serial cross data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code
• 1.5 feet short null serial adapter f/f for hooking up PC laptop to some old RS232C equipment like scanner, Modem, printer, plotter, camera, barcode / embroidery machine, touchscreen, microcontroller, factory test equipment
