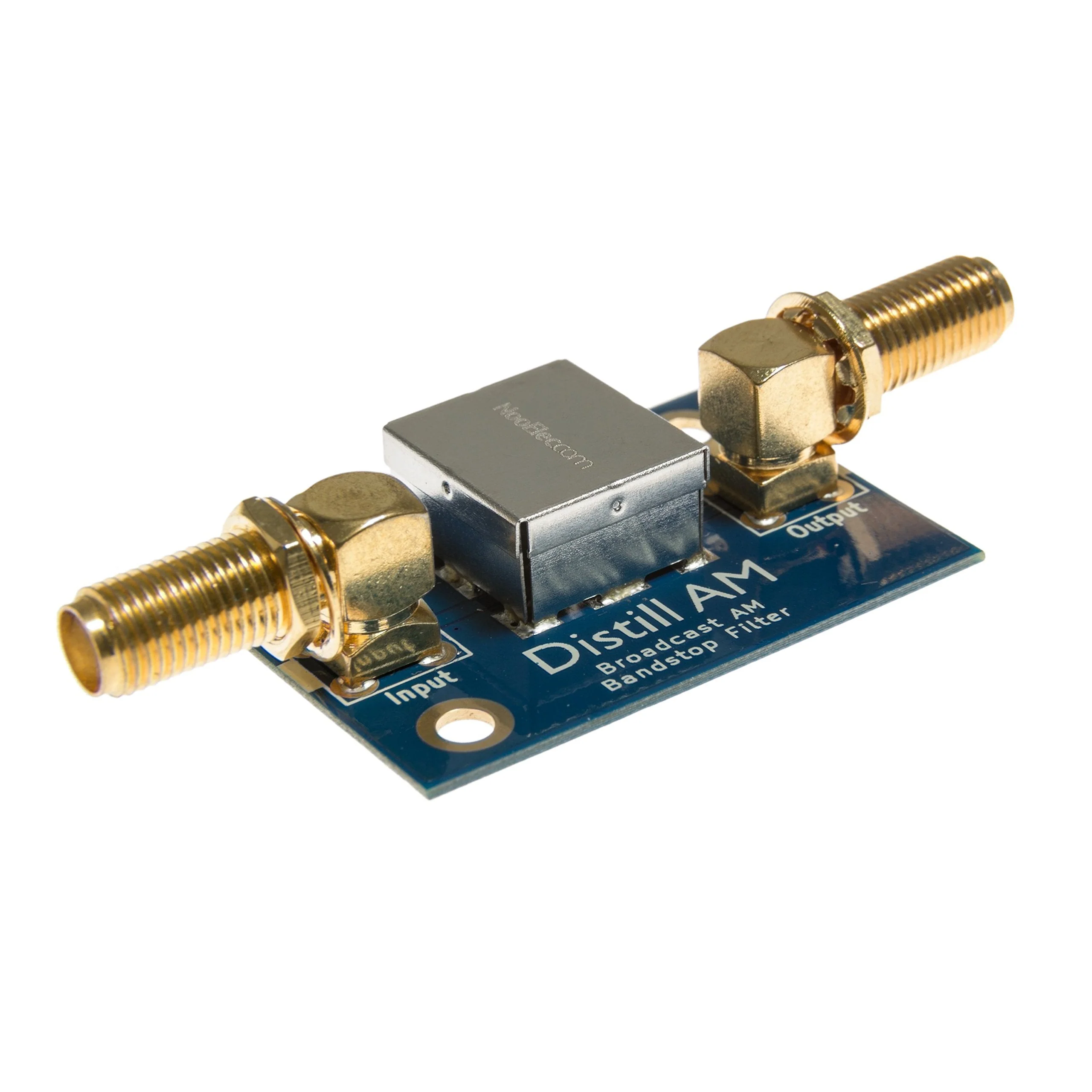

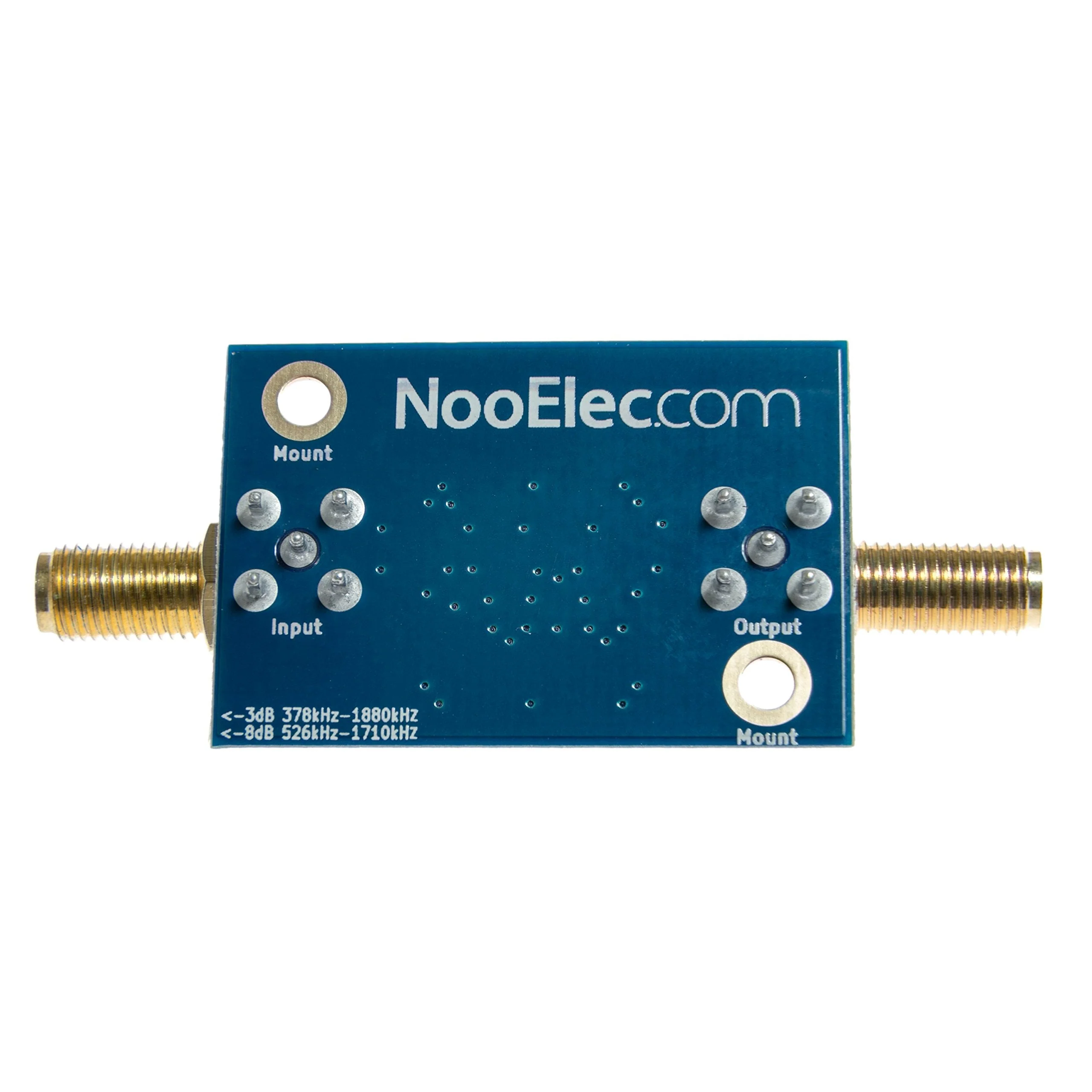

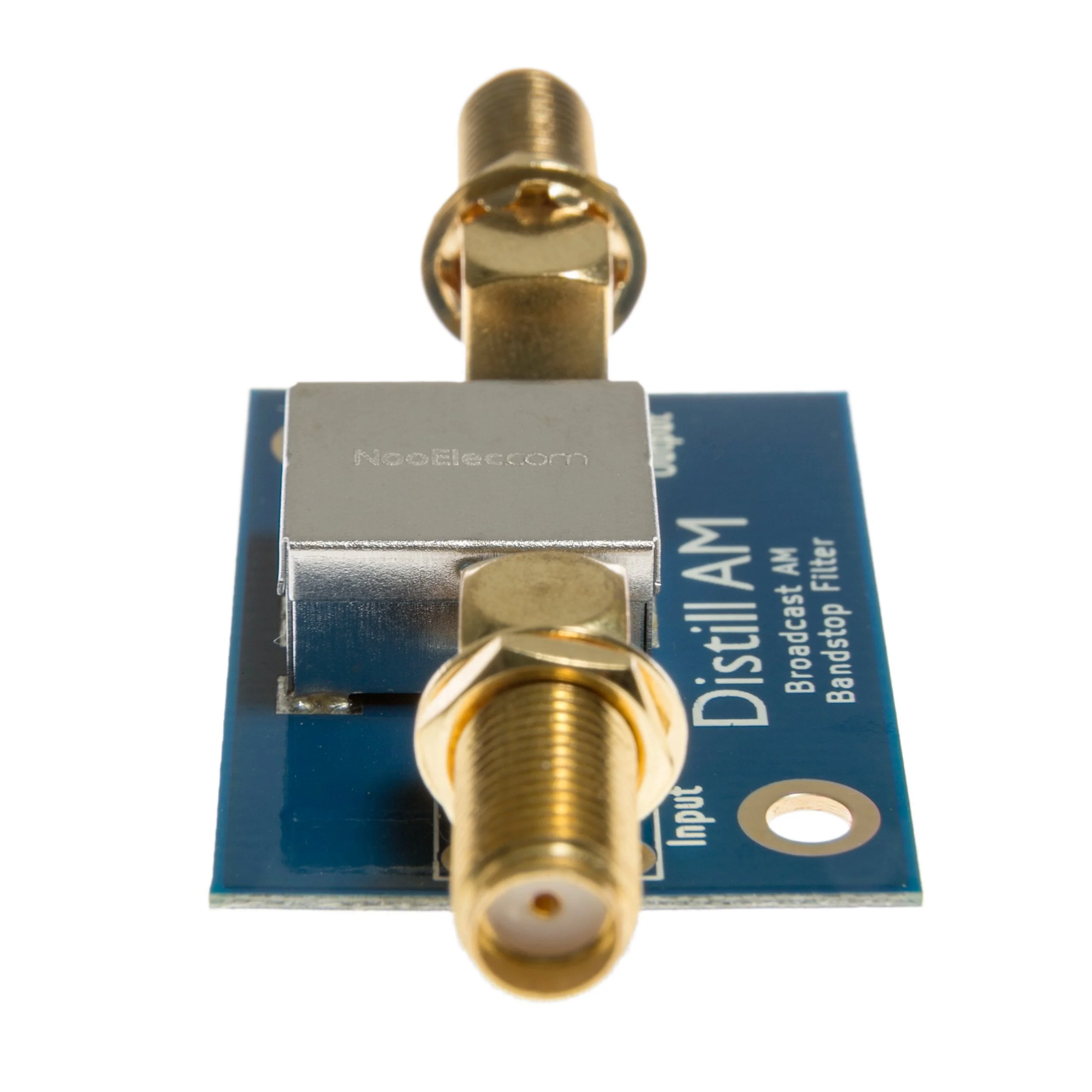

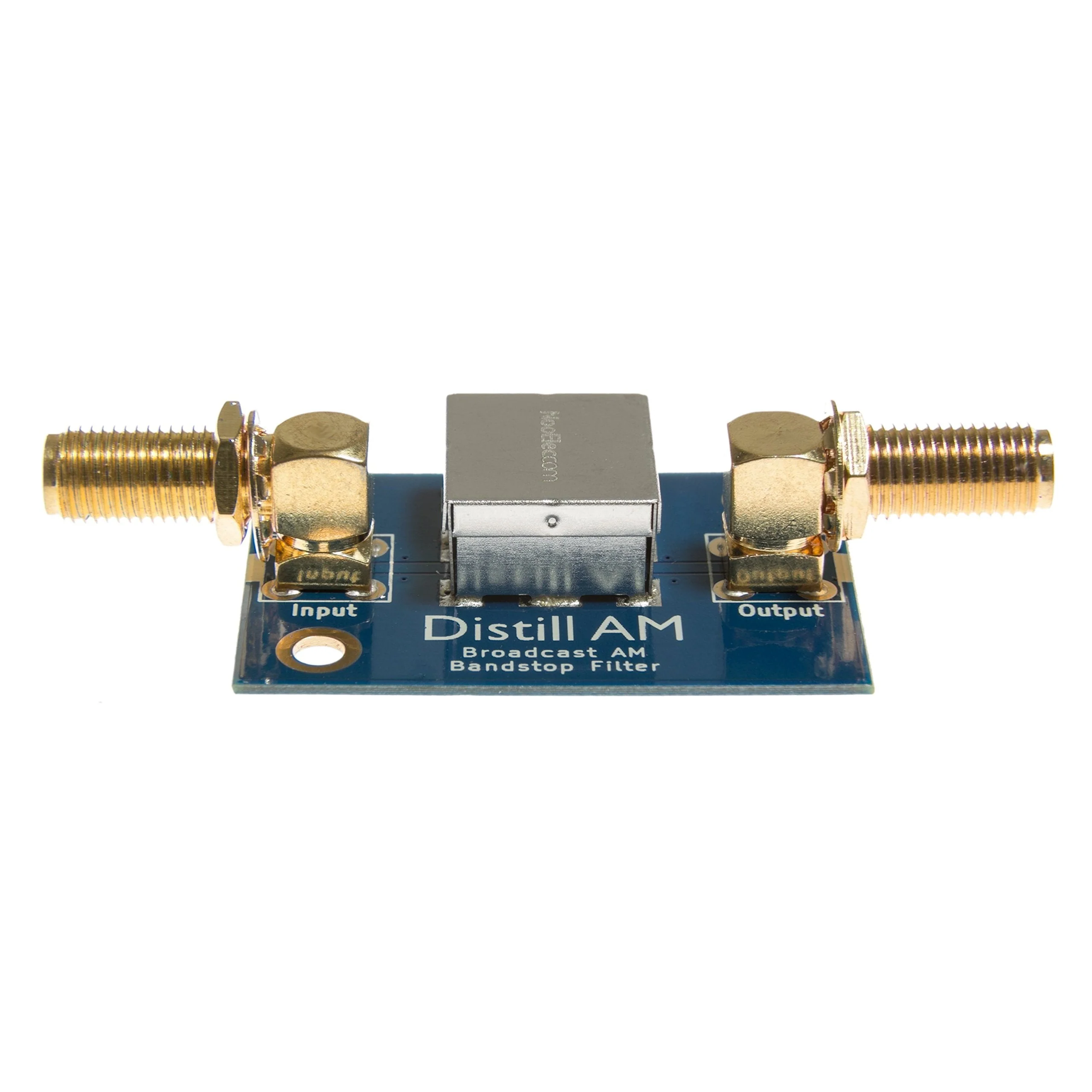

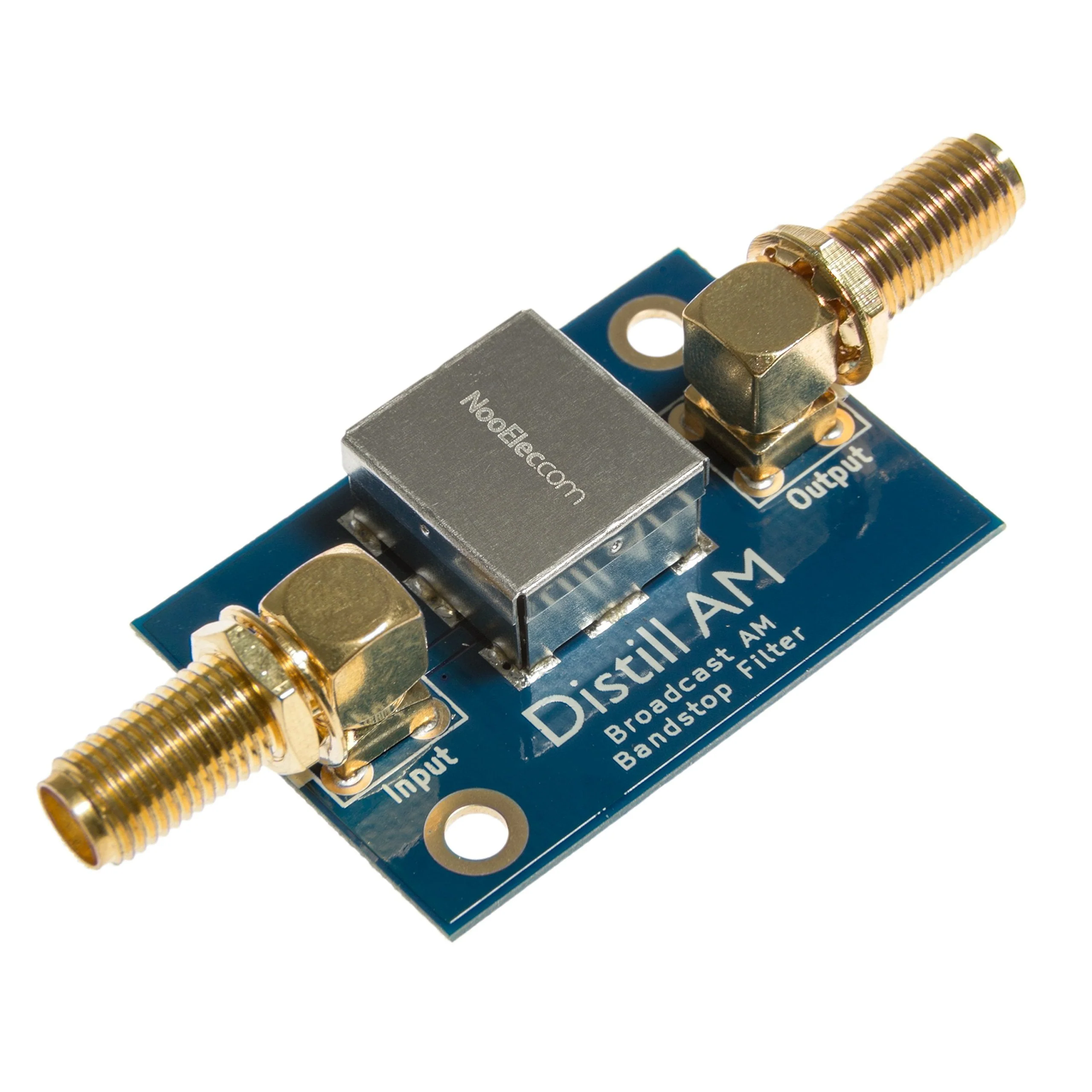

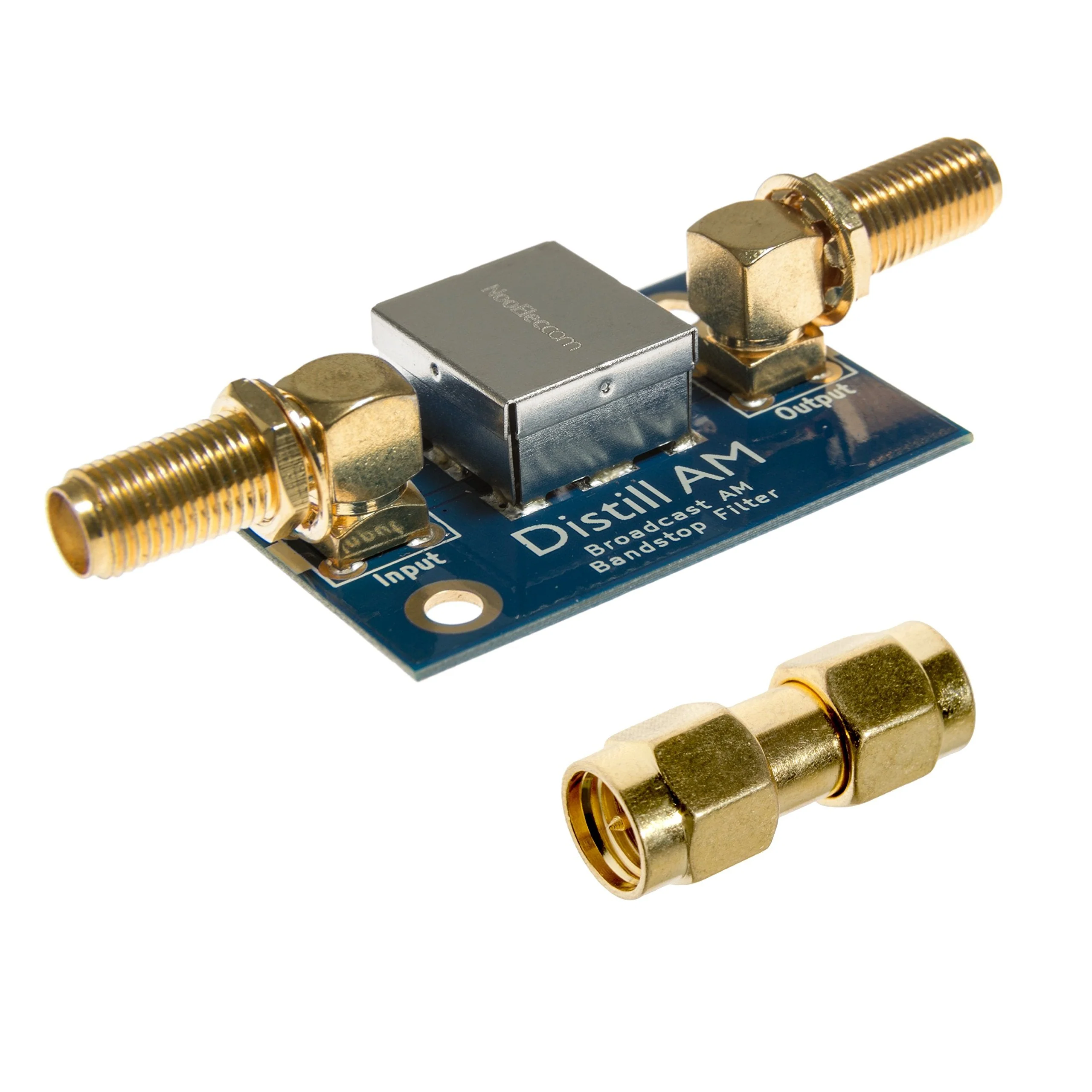

Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Product Features
- A high-quality, high-performance bandstop filter designed to attenuate broadcast AM for software defined radio (SDR) applications. Bandstop design means the filter will pass DC (bias-t power)
- Makes a great companion to the Ham It Up or Ham It Up Plus upconverter! Distill:AM will also greatly improve performance of RTL-SDRs which utilize direct sampling hacks to receive HF
- Distill:AM has its filter circuitry fully shielded with an EMI frame, and has its front end protected by an ESD diode meant for RF applications
- -3dB rolloff frequencies: 350kHz & 1900kHz; attenuation (typical): 40dB; DC current handling: 250mA (min); AC signal level handling: +18dBm (min)
- Designed and manufactured by NooElec in the United States. Full 2 year product warranty direct through NooElec
$24.22
Original: $80.72
-70%Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications—
$80.72
$24.22More Images
Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Product Features
- A high-quality, high-performance bandstop filter designed to attenuate broadcast AM for software defined radio (SDR) applications. Bandstop design means the filter will pass DC (bias-t power)
- Makes a great companion to the Ham It Up or Ham It Up Plus upconverter! Distill:AM will also greatly improve performance of RTL-SDRs which utilize direct sampling hacks to receive HF
- Distill:AM has its filter circuitry fully shielded with an EMI frame, and has its front end protected by an ESD diode meant for RF applications
- -3dB rolloff frequencies: 350kHz & 1900kHz; attenuation (typical): 40dB; DC current handling: 250mA (min); AC signal level handling: +18dBm (min)
- Designed and manufactured by NooElec in the United States. Full 2 year product warranty direct through NooElec
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Distill:AM Barebones - Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (SDR) Applications
Product Features
- A high-quality, high-performance bandstop filter designed to attenuate broadcast AM for software defined radio (SDR) applications. Bandstop design means the filter will pass DC (bias-t power)
- Makes a great companion to the Ham It Up or Ham It Up Plus upconverter! Distill:AM will also greatly improve performance of RTL-SDRs which utilize direct sampling hacks to receive HF
- Distill:AM has its filter circuitry fully shielded with an EMI frame, and has its front end protected by an ESD diode meant for RF applications
- -3dB rolloff frequencies: 350kHz & 1900kHz; attenuation (typical): 40dB; DC current handling: 250mA (min); AC signal level handling: +18dBm (min)
- Designed and manufactured by NooElec in the United States. Full 2 year product warranty direct through NooElec
