Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection
Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection
Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection

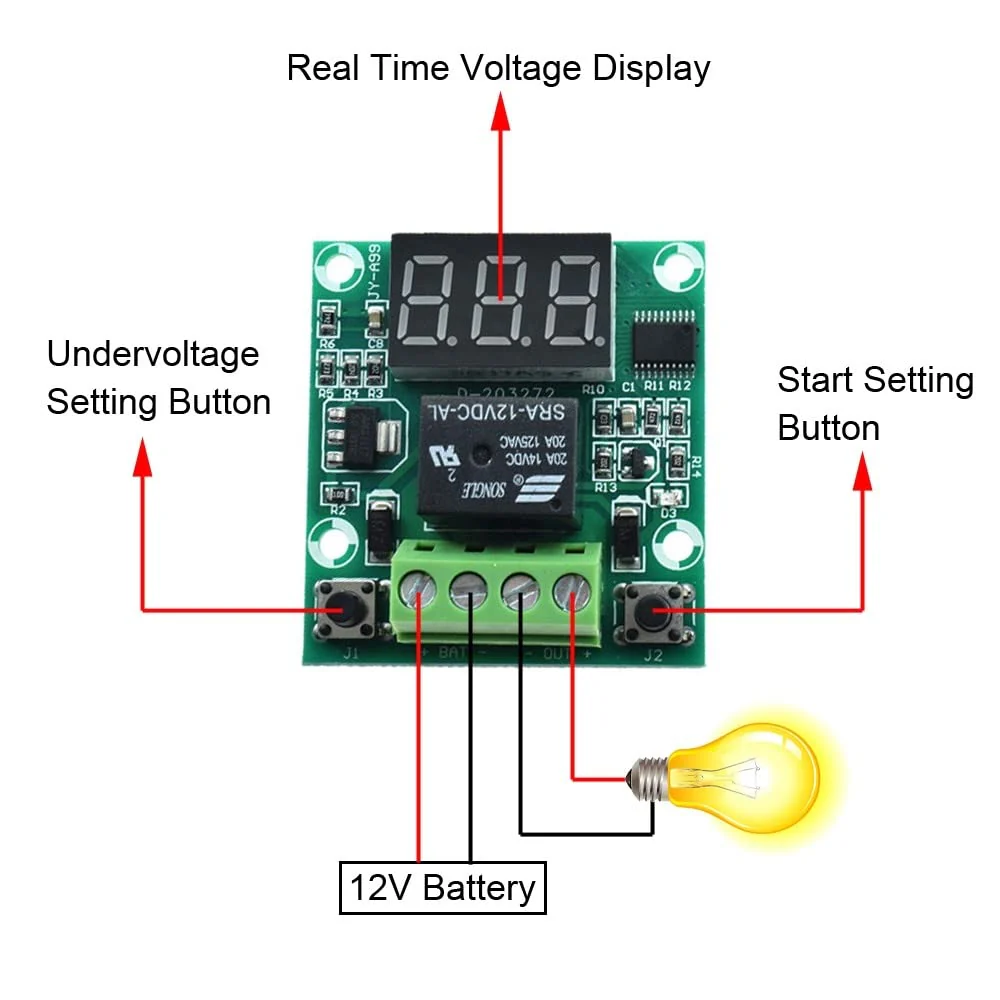

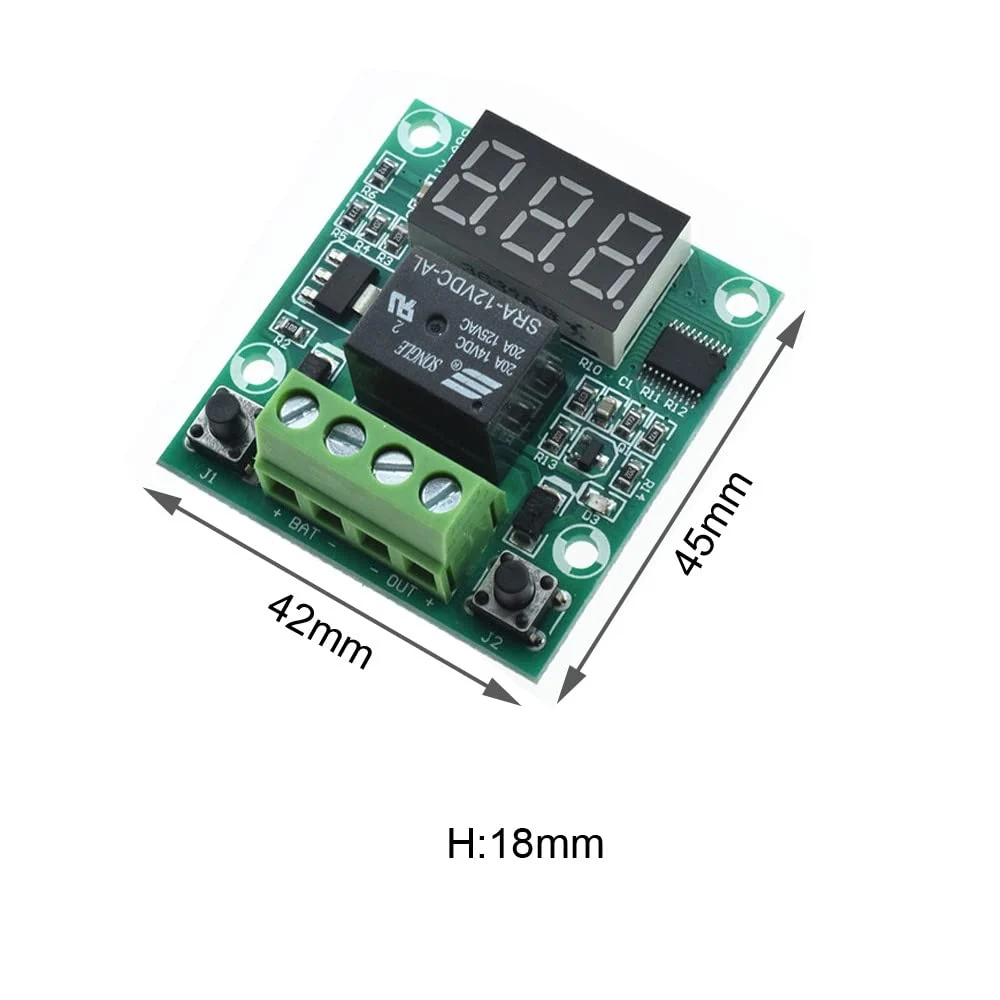

Features: When the battery voltage is lower than the set low voltage value, the module will be automatically disconnected from the load; when the battery voltage is higher than the starting value, the module automatically connects the load. Adjustment instructions: 1).Instructions for adjusting the low voltage value: 1.1). Display current parameters: Press the J1 button to display the currently set undervoltage parameter value. 1.2). Set the undervoltage parameter: long press the J1 button until the digital tube flashes, and use J1 and J2 to adjust the undervoltage parameter value. Instructions for setting the starting value: 2.1). Display current parameters: Press the J2 button to display the currently set start parameters. 2.2). Set Start Parameters Long press the J2 button until the digital tube flashes, and use J1 and J2 to adjust the start parameters. Specifications: Input voltage: DC 10V-15V (for 12V battery) Load capacity: 20 A relay. Working temperature: -25℃~85℃. Working humidity: 5% ~ 95% RH Size: 45 x 42 x 18 mm Package list: 1 x battery low voltage protection module.
Product Features
- It is a battery low voltage protection module. When the battery voltage is below the set low voltage value, the module automatically disconnects the load. When the battery voltage is higher than the starting value, the module automatically connects the load. It has a digital display that can display the real-time voltage of the battery.
- Its battery voltage is lower than the low voltage value or higher than the starting value, it reacts automatically.
- It is easy to connect with clamps and can be used after connecting the battery and load.
- It has two buttons that can be used to adjust the undervoltage value and the start value.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.
Original: $96.86
-70%$96.86
$29.06More Images
Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection
Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection
Features: When the battery voltage is lower than the set low voltage value, the module will be automatically disconnected from the load; when the battery voltage is higher than the starting value, the module automatically connects the load. Adjustment instructions: 1).Instructions for adjusting the low voltage value: 1.1). Display current parameters: Press the J1 button to display the currently set undervoltage parameter value. 1.2). Set the undervoltage parameter: long press the J1 button until the digital tube flashes, and use J1 and J2 to adjust the undervoltage parameter value. Instructions for setting the starting value: 2.1). Display current parameters: Press the J2 button to display the currently set start parameters. 2.2). Set Start Parameters Long press the J2 button until the digital tube flashes, and use J1 and J2 to adjust the start parameters. Specifications: Input voltage: DC 10V-15V (for 12V battery) Load capacity: 20 A relay. Working temperature: -25℃~85℃. Working humidity: 5% ~ 95% RH Size: 45 x 42 x 18 mm Package list: 1 x battery low voltage protection module.
Product Features
- It is a battery low voltage protection module. When the battery voltage is below the set low voltage value, the module automatically disconnects the load. When the battery voltage is higher than the starting value, the module automatically connects the load. It has a digital display that can display the real-time voltage of the battery.
- Its battery voltage is lower than the low voltage value or higher than the starting value, it reacts automatically.
- It is easy to connect with clamps and can be used after connecting the battery and load.
- It has two buttons that can be used to adjust the undervoltage value and the start value.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Battery Undervoltage Protection Module, JY-A99 DC 12V Battery Undervoltage Protection Module, 6s Delay Under Voltage Regulator, Battery Voltage Protection
Features: When the battery voltage is lower than the set low voltage value, the module will be automatically disconnected from the load; when the battery voltage is higher than the starting value, the module automatically connects the load. Adjustment instructions: 1).Instructions for adjusting the low voltage value: 1.1). Display current parameters: Press the J1 button to display the currently set undervoltage parameter value. 1.2). Set the undervoltage parameter: long press the J1 button until the digital tube flashes, and use J1 and J2 to adjust the undervoltage parameter value. Instructions for setting the starting value: 2.1). Display current parameters: Press the J2 button to display the currently set start parameters. 2.2). Set Start Parameters Long press the J2 button until the digital tube flashes, and use J1 and J2 to adjust the start parameters. Specifications: Input voltage: DC 10V-15V (for 12V battery) Load capacity: 20 A relay. Working temperature: -25℃~85℃. Working humidity: 5% ~ 95% RH Size: 45 x 42 x 18 mm Package list: 1 x battery low voltage protection module.
Product Features
- It is a battery low voltage protection module. When the battery voltage is below the set low voltage value, the module automatically disconnects the load. When the battery voltage is higher than the starting value, the module automatically connects the load. It has a digital display that can display the real-time voltage of the battery.
- Its battery voltage is lower than the low voltage value or higher than the starting value, it reacts automatically.
- It is easy to connect with clamps and can be used after connecting the battery and load.
- It has two buttons that can be used to adjust the undervoltage value and the start value.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.
