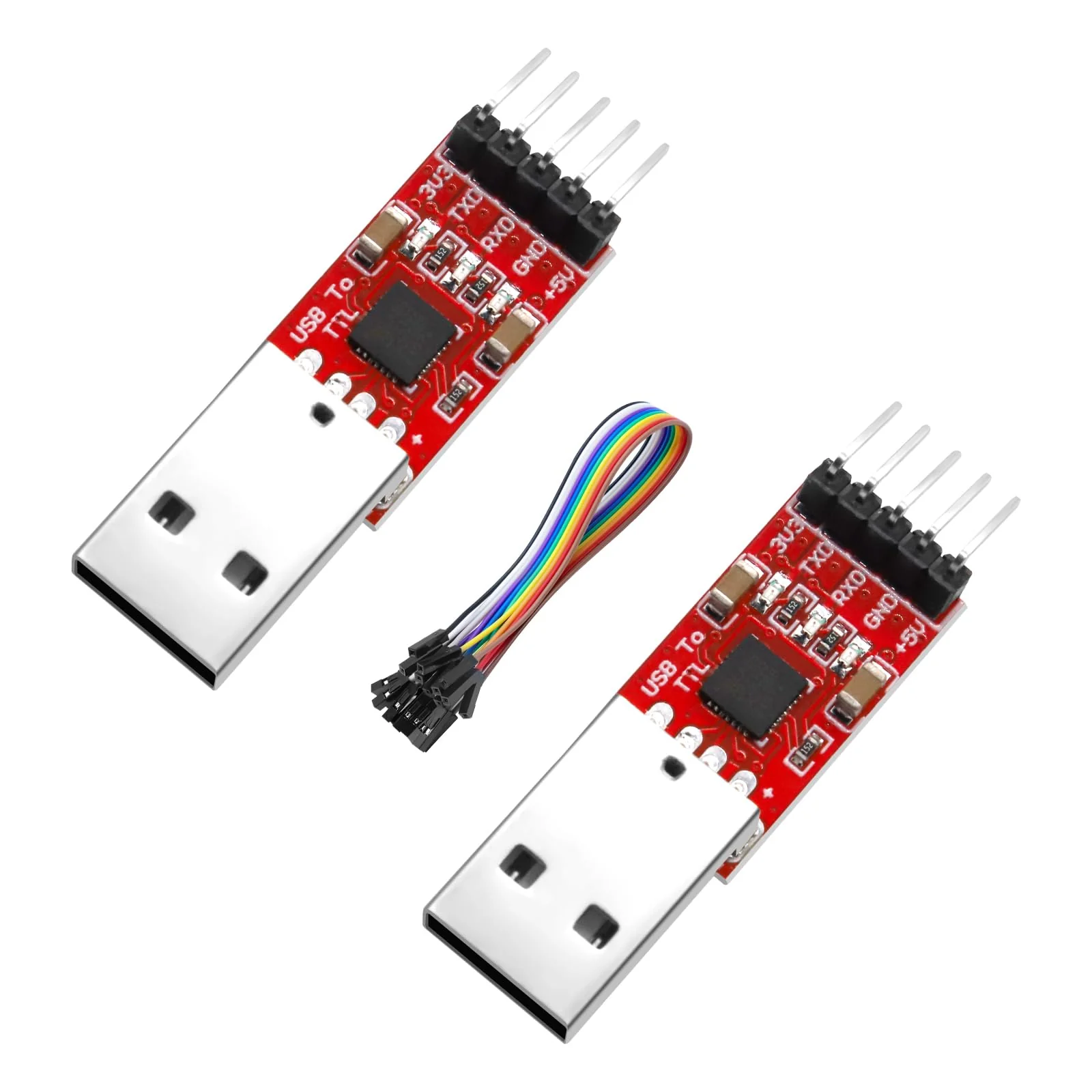

AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
Description: USB to TTL adapter converter is a high-performance serial module widely used for debugging, firmware burning, serial communication and other applications for Arduino, ESP8266, ESP32, STM32 and other development boards. The module supports 3.3V and 5V logical level switching, compatible with a variety of microcontrollers and IoT devices, and stable drivers, supports Windows, Linux, MacOS system, plug and play. The module adopts HW-598 circuit design and integrates CP2102 high speed chip to ensure stable and reliable data transmission, which is suitable for embedded systems, development and debugging, firmware burning and other application scenarios. Parameters: 1. Single chip USB to TTL adapter data converter. Integrated USB transceiver without external resistance. Integrated clock without external oscillator Built-in 512 byte EEPROM provides storage space for manufacturer code, product code, serial number, power label version number, and product description. On- chip circuit for power on reset - on-chip voltage regulator with 3.3 V output USB function controller USB Specification 2.0 Full Speed (12Mbps) compliant. USB cancel status supported by SUSPEND and RI pins 2. Asynchronous Serial Data Bus (UART) Baud rate 300bps to 921.6kbps. 512 bytes reception buffer 512 byte transmission buffer Supports hardware or X-On/X-Off handshaking Supports event status and line termination conditions 3. Supported COM port device driver devices. Windows 98/Me/2000/XP. MAC OS 9 MAC OS Windows CE Linux 2.40 or higher 4. Supply voltage. Own power supply: 3.0 V to 3.6 V. Power supply via USB bus: 4.0 V to 5.25 V. Specification: Size: 57 mm x 14 mm. Weight: 6.6 g. Product included: 2 x CP2102 USB 2.0 to TTL UART Serial Converter Adapter 2 x jumper cable.
Product Features
- CP2102 chip: uses the powerful CP2102 chip for stable serial USB TTL adapter communication.
- USB TTL plug and play: connects directly via the USB interface without external power supply and can be easily connected to all standard 3.3 V and 5 V microcontrollers.

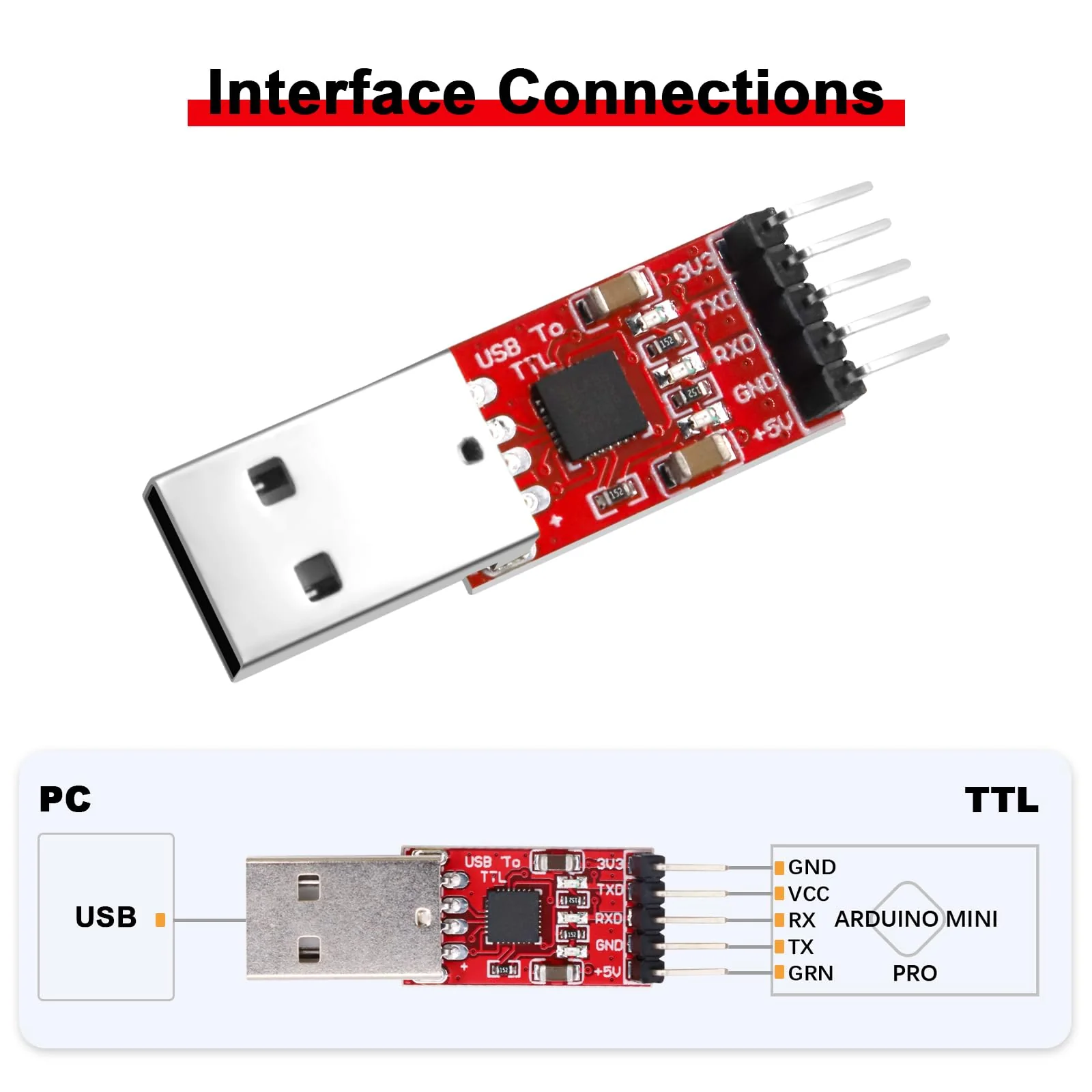

- USB power supply: the adapter is powered via USB with the output interfaces 3.3 V (<40 mA), 5 V, GND, TX, RX.
- Strong performance: the communication rate is up to 1 Mbps, and the converter achieves stable transmission even at higher data rates. Even small variations in temporal or electrical specifications do not throw the converter out of track.
- Strong compatibility: the USB TTL adapter supports Linux, macOS and Windows, which makes it easier to connect to development boards, sensors and other devices.
More Images
AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
Description: USB to TTL adapter converter is a high-performance serial module widely used for debugging, firmware burning, serial communication and other applications for Arduino, ESP8266, ESP32, STM32 and other development boards. The module supports 3.3V and 5V logical level switching, compatible with a variety of microcontrollers and IoT devices, and stable drivers, supports Windows, Linux, MacOS system, plug and play. The module adopts HW-598 circuit design and integrates CP2102 high speed chip to ensure stable and reliable data transmission, which is suitable for embedded systems, development and debugging, firmware burning and other application scenarios. Parameters: 1. Single chip USB to TTL adapter data converter. Integrated USB transceiver without external resistance. Integrated clock without external oscillator Built-in 512 byte EEPROM provides storage space for manufacturer code, product code, serial number, power label version number, and product description. On- chip circuit for power on reset - on-chip voltage regulator with 3.3 V output USB function controller USB Specification 2.0 Full Speed (12Mbps) compliant. USB cancel status supported by SUSPEND and RI pins 2. Asynchronous Serial Data Bus (UART) Baud rate 300bps to 921.6kbps. 512 bytes reception buffer 512 byte transmission buffer Supports hardware or X-On/X-Off handshaking Supports event status and line termination conditions 3. Supported COM port device driver devices. Windows 98/Me/2000/XP. MAC OS 9 MAC OS Windows CE Linux 2.40 or higher 4. Supply voltage. Own power supply: 3.0 V to 3.6 V. Power supply via USB bus: 4.0 V to 5.25 V. Specification: Size: 57 mm x 14 mm. Weight: 6.6 g. Product included: 2 x CP2102 USB 2.0 to TTL UART Serial Converter Adapter 2 x jumper cable.
Product Features
- CP2102 chip: uses the powerful CP2102 chip for stable serial USB TTL adapter communication.
- USB TTL plug and play: connects directly via the USB interface without external power supply and can be easily connected to all standard 3.3 V and 5 V microcontrollers.
- USB power supply: the adapter is powered via USB with the output interfaces 3.3 V (<40 mA), 5 V, GND, TX, RX.
- Strong performance: the communication rate is up to 1 Mbps, and the converter achieves stable transmission even at higher data rates. Even small variations in temporal or electrical specifications do not throw the converter out of track.
- Strong compatibility: the USB TTL adapter supports Linux, macOS and Windows, which makes it easier to connect to development boards, sensors and other devices.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
AYWHP CP2102 HW-598 USB to TTL Serial Converter Module UART USB TTL Adapter Converter for 3.3 V and 5 V with Jumper Cable Pack of 2
Description: USB to TTL adapter converter is a high-performance serial module widely used for debugging, firmware burning, serial communication and other applications for Arduino, ESP8266, ESP32, STM32 and other development boards. The module supports 3.3V and 5V logical level switching, compatible with a variety of microcontrollers and IoT devices, and stable drivers, supports Windows, Linux, MacOS system, plug and play. The module adopts HW-598 circuit design and integrates CP2102 high speed chip to ensure stable and reliable data transmission, which is suitable for embedded systems, development and debugging, firmware burning and other application scenarios. Parameters: 1. Single chip USB to TTL adapter data converter. Integrated USB transceiver without external resistance. Integrated clock without external oscillator Built-in 512 byte EEPROM provides storage space for manufacturer code, product code, serial number, power label version number, and product description. On- chip circuit for power on reset - on-chip voltage regulator with 3.3 V output USB function controller USB Specification 2.0 Full Speed (12Mbps) compliant. USB cancel status supported by SUSPEND and RI pins 2. Asynchronous Serial Data Bus (UART) Baud rate 300bps to 921.6kbps. 512 bytes reception buffer 512 byte transmission buffer Supports hardware or X-On/X-Off handshaking Supports event status and line termination conditions 3. Supported COM port device driver devices. Windows 98/Me/2000/XP. MAC OS 9 MAC OS Windows CE Linux 2.40 or higher 4. Supply voltage. Own power supply: 3.0 V to 3.6 V. Power supply via USB bus: 4.0 V to 5.25 V. Specification: Size: 57 mm x 14 mm. Weight: 6.6 g. Product included: 2 x CP2102 USB 2.0 to TTL UART Serial Converter Adapter 2 x jumper cable.
Product Features
- CP2102 chip: uses the powerful CP2102 chip for stable serial USB TTL adapter communication.
- USB TTL plug and play: connects directly via the USB interface without external power supply and can be easily connected to all standard 3.3 V and 5 V microcontrollers.
- USB power supply: the adapter is powered via USB with the output interfaces 3.3 V (<40 mA), 5 V, GND, TX, RX.
- Strong performance: the communication rate is up to 1 Mbps, and the converter achieves stable transmission even at higher data rates. Even small variations in temporal or electrical specifications do not throw the converter out of track.
- Strong compatibility: the USB TTL adapter supports Linux, macOS and Windows, which makes it easier to connect to development boards, sensors and other devices.
