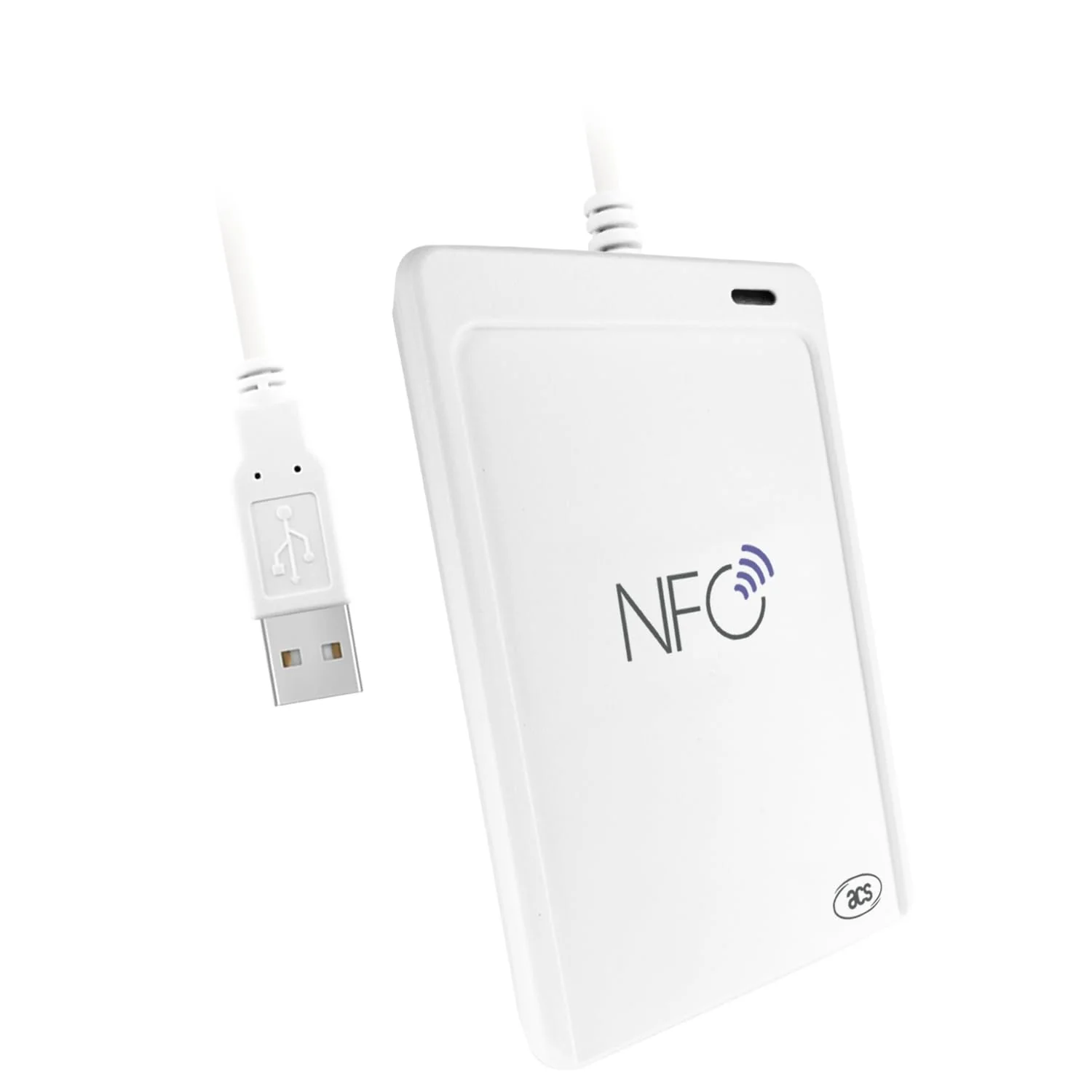

ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface
ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface
1.Dimensions (mm): 98 x 65 x 12.8 mm 2. Weight (g)：89 g USB Interface 1.Protocol : USB CCID 2. Connector Type:USB Type-A (ACR1552U-M1) 3. Power Source: From USB port 4. Speed: USB Full Speed (12 Mbps) 5. Cable Length: 1m, Non-detachable Contactless Smart Card Interface 1.Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE, FeliCa 2.Protocol: ISO 14443-4 Compliant Card, T=CL MIFARE Classic Card, T=CL ISO 15693 ISO 18092 NFC Tags FeliCa SAM Card Interface 1. Number of Slots:1 Standard SIM-sized Card Slot, built-in on PCB board ( need to open the reader and insert the SAM card on PCB board) 2. Standard: ISO 7816 Class A (5V) 3. Protocol: T=0; T=1 Built-in Peripherals 1. LED: 1 bi-color: Blue and Green 2. Buzzer: Yes Other Features 1. Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card 2.NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation 3. Firmware Upgrade: Supported Certifications/Compliance 1. Certifications/ComplianceCertifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft WHQL 2. Device Driver Operating System Support: Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
Product Features
- 13.56 MHz NFC reader, model ACR1552U
- support MF1k, MF4k, Ultraight, UltralightC, Ntag213/ 215/ 216, MF Plus 2k/ 4k, MF Desfire 2k/ 4k /8k, ICODE SLIX FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
- Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
More Images
ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface
ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface
1.Dimensions (mm): 98 x 65 x 12.8 mm 2. Weight (g)：89 g USB Interface 1.Protocol : USB CCID 2. Connector Type:USB Type-A (ACR1552U-M1) 3. Power Source: From USB port 4. Speed: USB Full Speed (12 Mbps) 5. Cable Length: 1m, Non-detachable Contactless Smart Card Interface 1.Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE, FeliCa 2.Protocol: ISO 14443-4 Compliant Card, T=CL MIFARE Classic Card, T=CL ISO 15693 ISO 18092 NFC Tags FeliCa SAM Card Interface 1. Number of Slots:1 Standard SIM-sized Card Slot, built-in on PCB board ( need to open the reader and insert the SAM card on PCB board) 2. Standard: ISO 7816 Class A (5V) 3. Protocol: T=0; T=1 Built-in Peripherals 1. LED: 1 bi-color: Blue and Green 2. Buzzer: Yes Other Features 1. Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card 2.NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation 3. Firmware Upgrade: Supported Certifications/Compliance 1. Certifications/ComplianceCertifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft WHQL 2. Device Driver Operating System Support: Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
Product Features
- 13.56 MHz NFC reader, model ACR1552U
- support MF1k, MF4k, Ultraight, UltralightC, Ntag213/ 215/ 216, MF Plus 2k/ 4k, MF Desfire 2k/ 4k /8k, ICODE SLIX FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
- Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface
1.Dimensions (mm): 98 x 65 x 12.8 mm 2. Weight (g)：89 g USB Interface 1.Protocol : USB CCID 2. Connector Type:USB Type-A (ACR1552U-M1) 3. Power Source: From USB port 4. Speed: USB Full Speed (12 Mbps) 5. Cable Length: 1m, Non-detachable Contactless Smart Card Interface 1.Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE, FeliCa 2.Protocol: ISO 14443-4 Compliant Card, T=CL MIFARE Classic Card, T=CL ISO 15693 ISO 18092 NFC Tags FeliCa SAM Card Interface 1. Number of Slots:1 Standard SIM-sized Card Slot, built-in on PCB board ( need to open the reader and insert the SAM card on PCB board) 2. Standard: ISO 7816 Class A (5V) 3. Protocol: T=0; T=1 Built-in Peripherals 1. LED: 1 bi-color: Blue and Green 2. Buzzer: Yes Other Features 1. Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card 2.NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation 3. Firmware Upgrade: Supported Certifications/Compliance 1. Certifications/ComplianceCertifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft WHQL 2. Device Driver Operating System Support: Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
Product Features
- 13.56 MHz NFC reader, model ACR1552U
- support MF1k, MF4k, Ultraight, UltralightC, Ntag213/ 215/ 216, MF Plus 2k/ 4k, MF Desfire 2k/ 4k /8k, ICODE SLIX FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
- Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
