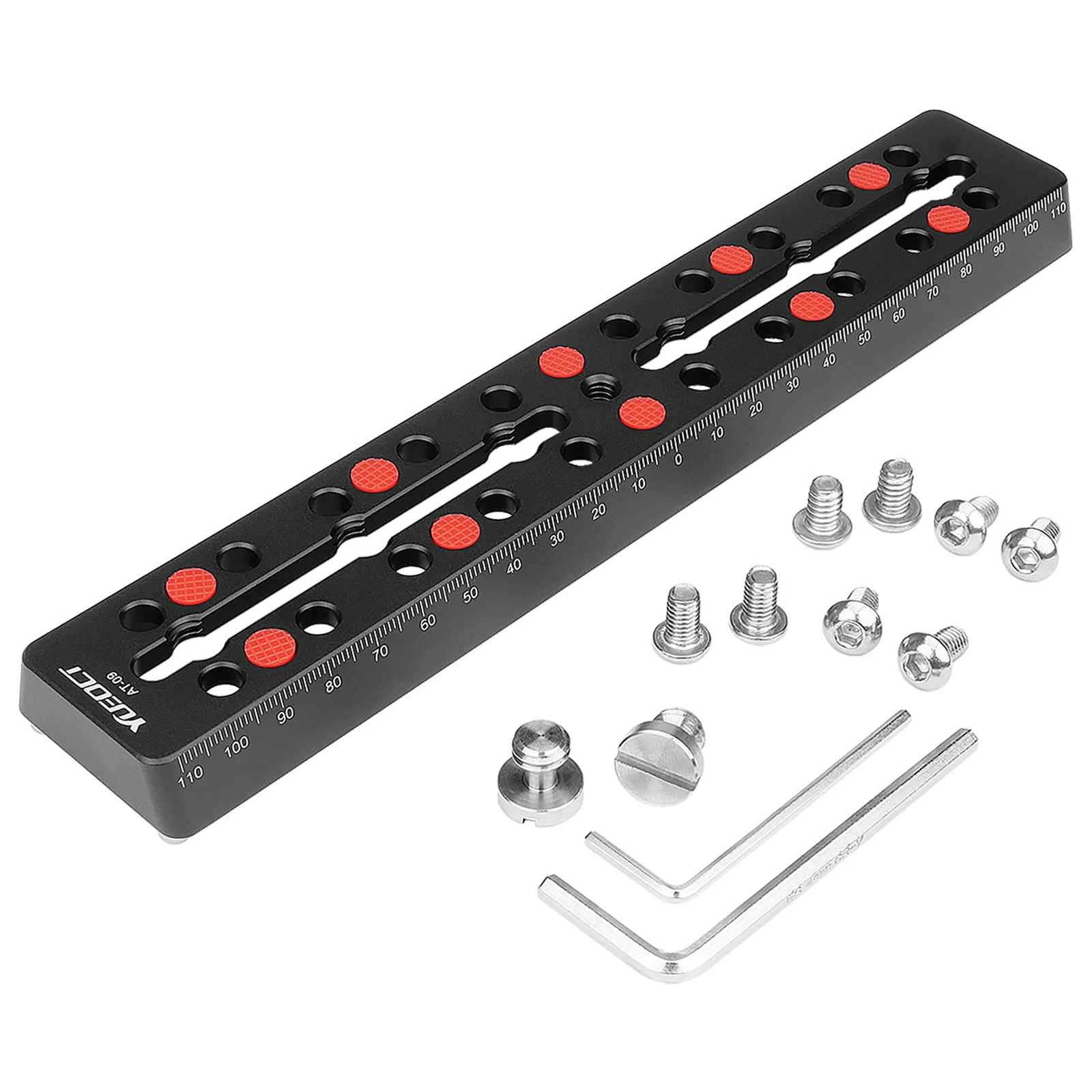

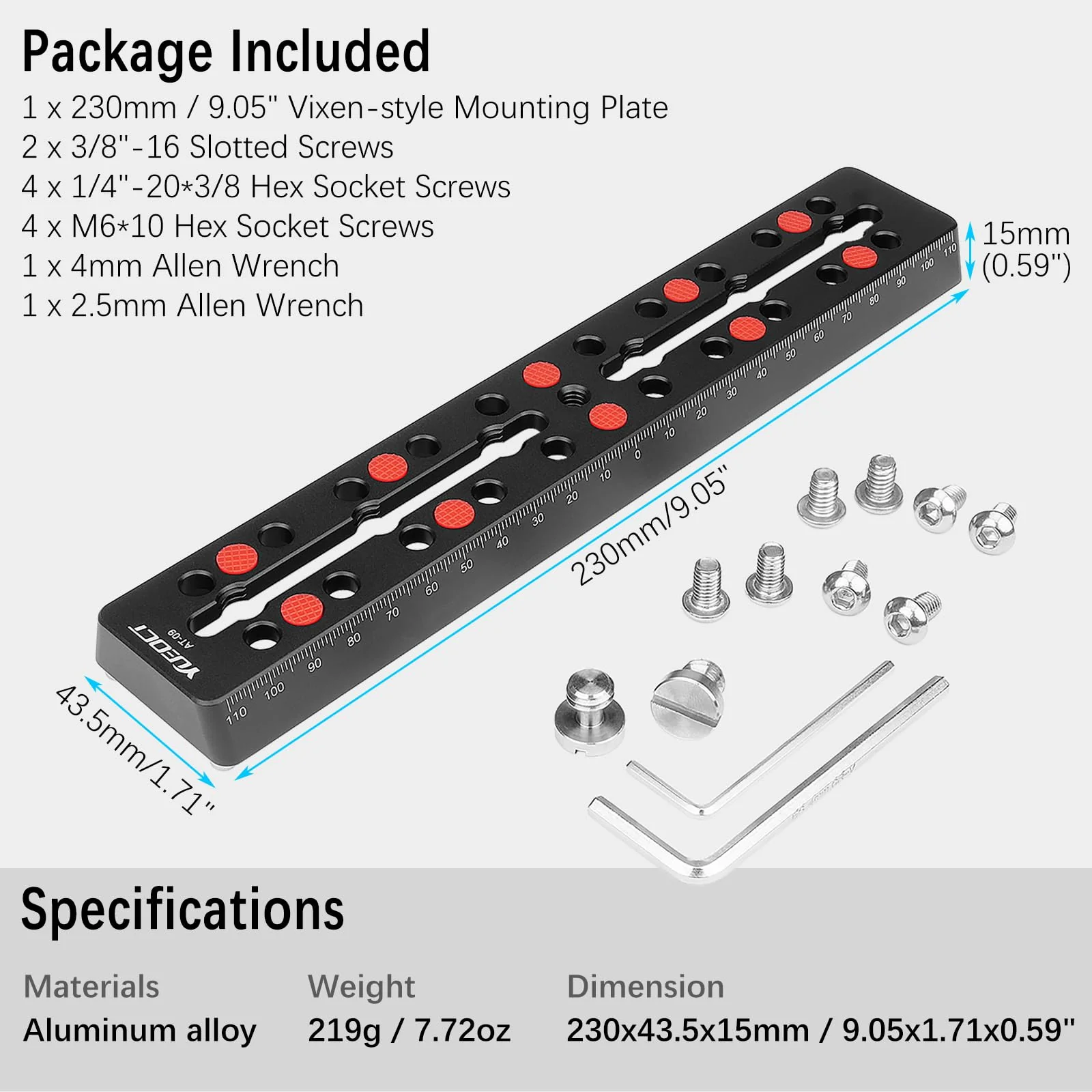

230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
Product Features

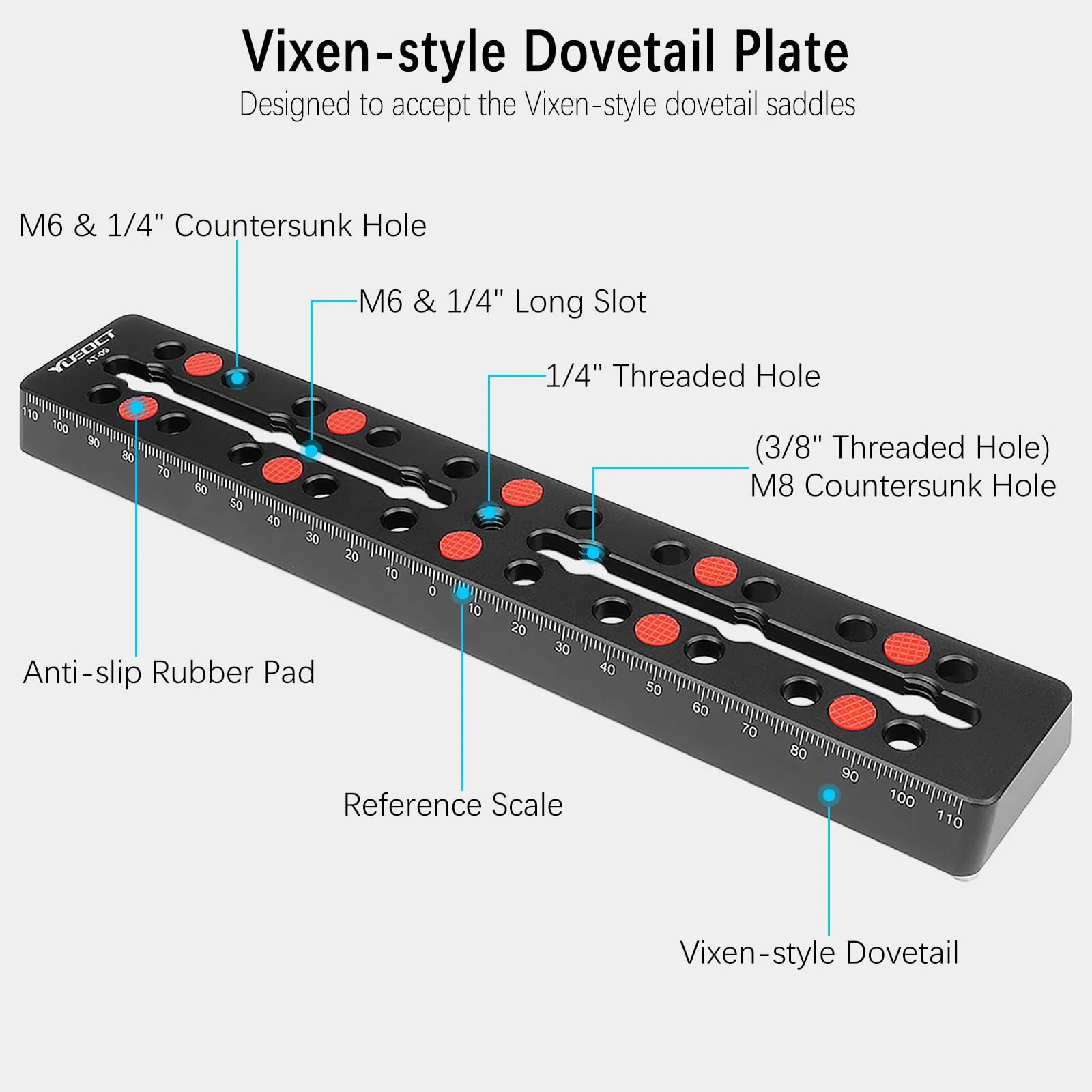

- Vixen-style Dovetail Plate Designed to accept the Vixen-style dovetail saddles.

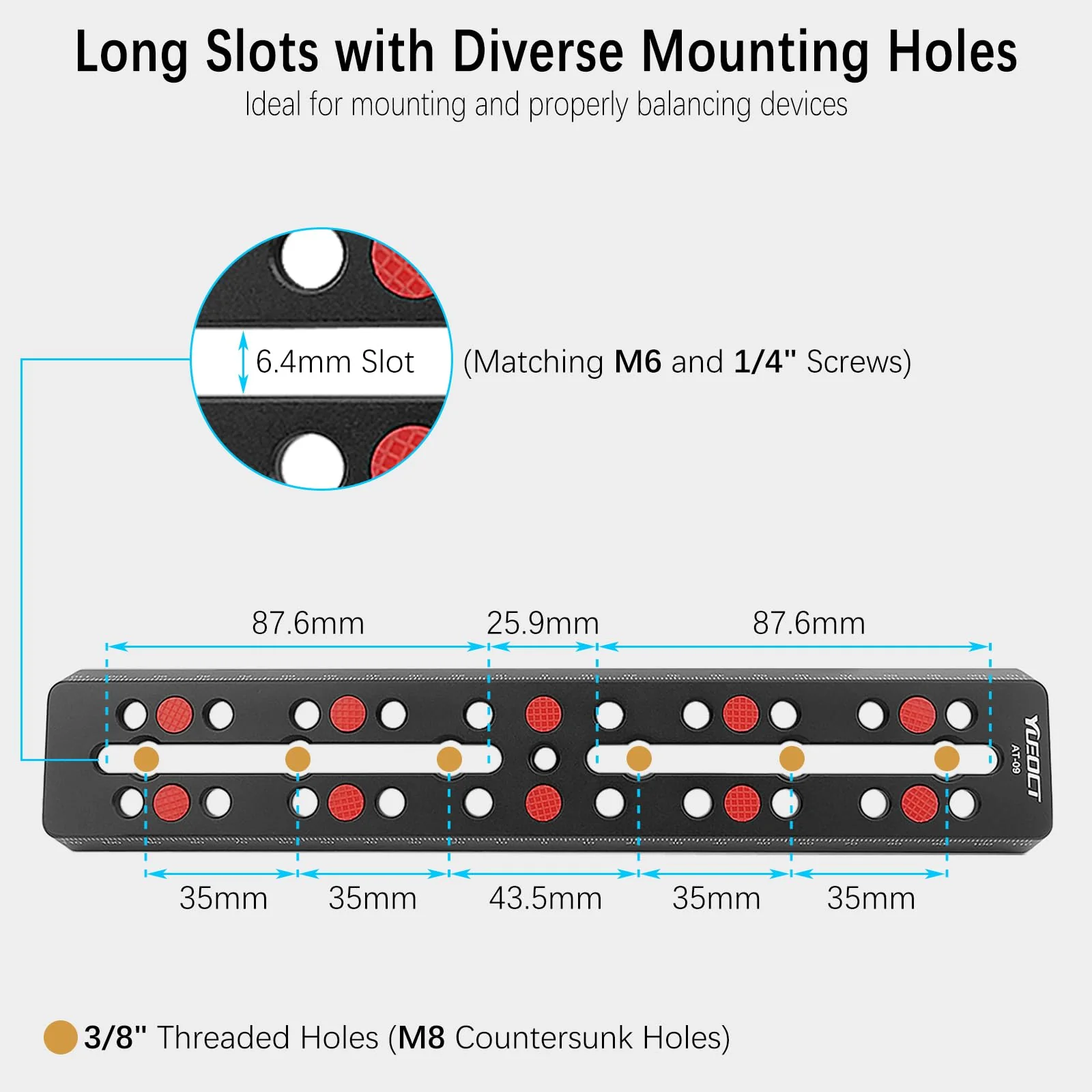

- Long Slots with Diverse Mounting Holes With two long 87.6mm (3.45") slots that is ideal for mounting and properly balancing devices. The slots are 6.4mm in width which accept M6 and 1/4" screws. In addition, there are three 3/8" threaded holes (M8 countersunk holes) with a spacing of 35mm (1.38") in each slot.

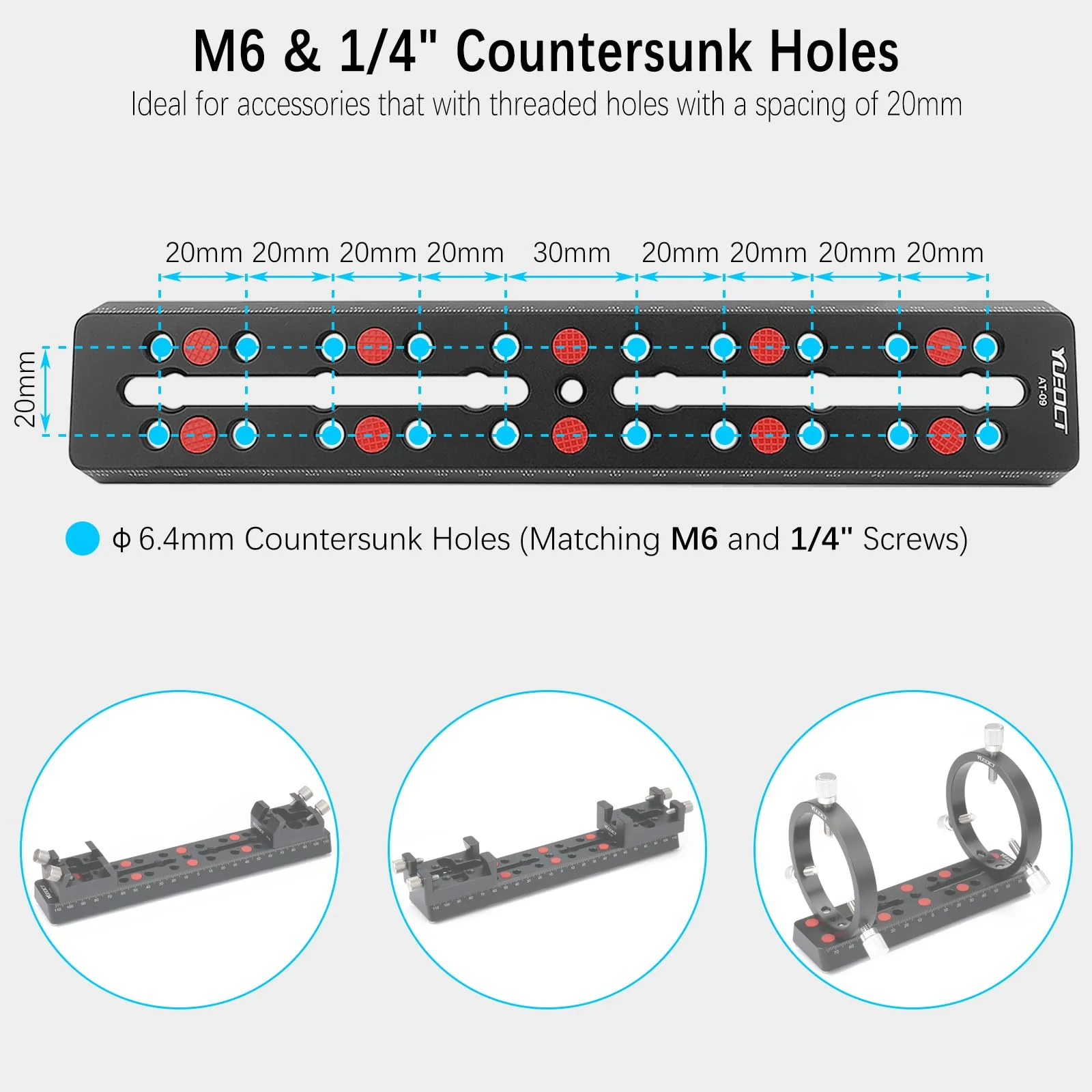

- M6 & 1/4" Countersunk Bores There are 10 pairs of 6.4mm countersunk holes with a spacing of 20mm (0.79"). The 6.4mm countersunk holes matching M6 and 1/4" screws. Ideal for accessories that with M6 or 1/4" threaded holes with a spacing of 20mm (0.79").

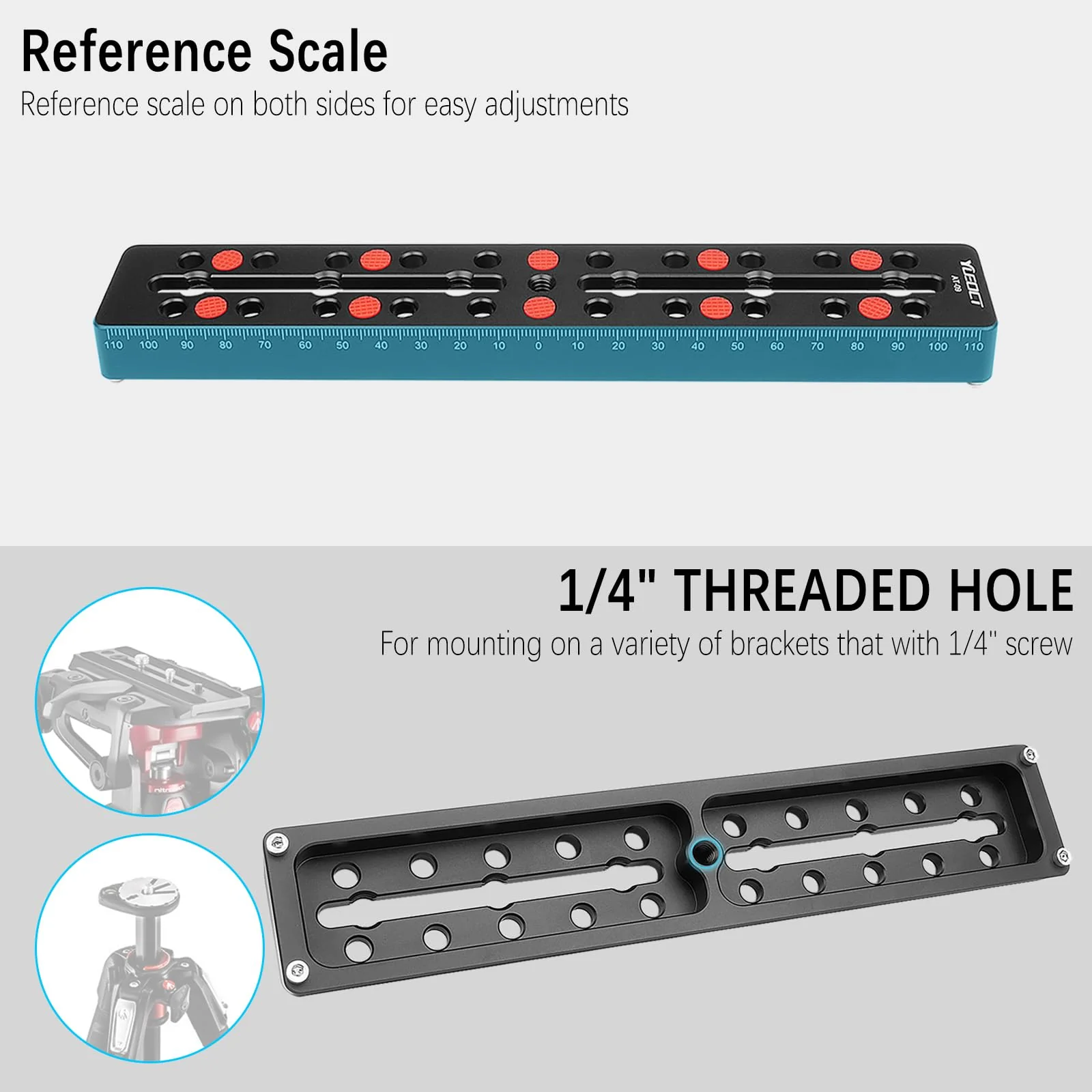

- 1/4" Threaded Holes It reserved 1/4" threaded hole in the center for mounting on a variety of brackets that with 1/4" screw.

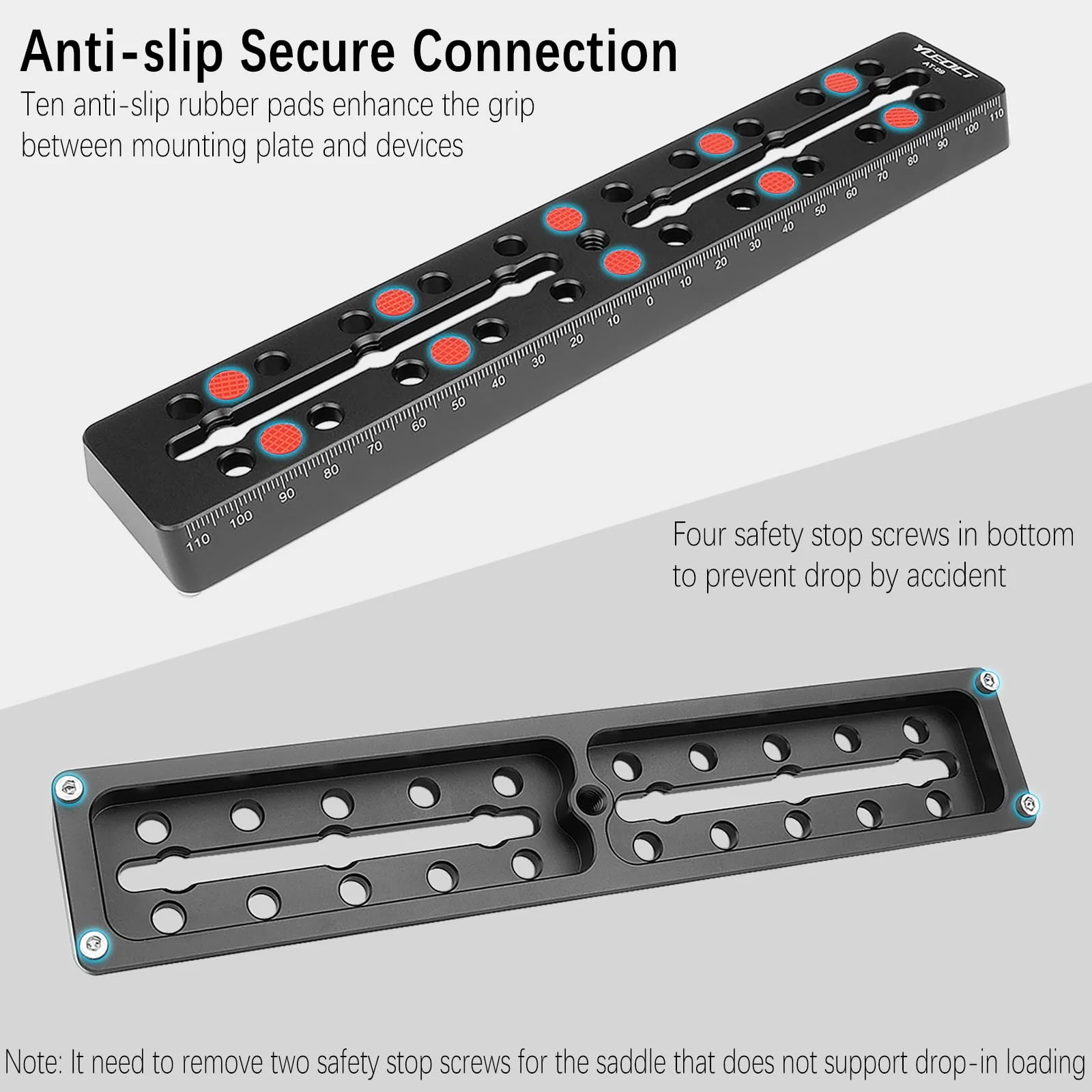

- Anti-slip Secure Connection Ten anti-slip rubber pads enhance the grip between mounting plate and devices, and protect devices from any damage due to mounting. Four safety stop screw in bottom is to prevent drop by accident. (Note: It need to remove two safety stop screws for the saddle that does not support drop-in loading)
$134.06
230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography—
$134.06
More Images
230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
Product Features
- Vixen-style Dovetail Plate Designed to accept the Vixen-style dovetail saddles.
- Long Slots with Diverse Mounting Holes With two long 87.6mm (3.45") slots that is ideal for mounting and properly balancing devices. The slots are 6.4mm in width which accept M6 and 1/4" screws. In addition, there are three 3/8" threaded holes (M8 countersunk holes) with a spacing of 35mm (1.38") in each slot.
- M6 & 1/4" Countersunk Bores There are 10 pairs of 6.4mm countersunk holes with a spacing of 20mm (0.79"). The 6.4mm countersunk holes matching M6 and 1/4" screws. Ideal for accessories that with M6 or 1/4" threaded holes with a spacing of 20mm (0.79").
- 1/4" Threaded Holes It reserved 1/4" threaded hole in the center for mounting on a variety of brackets that with 1/4" screw.
- Anti-slip Secure Connection Ten anti-slip rubber pads enhance the grip between mounting plate and devices, and protect devices from any damage due to mounting. Four safety stop screw in bottom is to prevent drop by accident. (Note: It need to remove two safety stop screws for the saddle that does not support drop-in loading)
